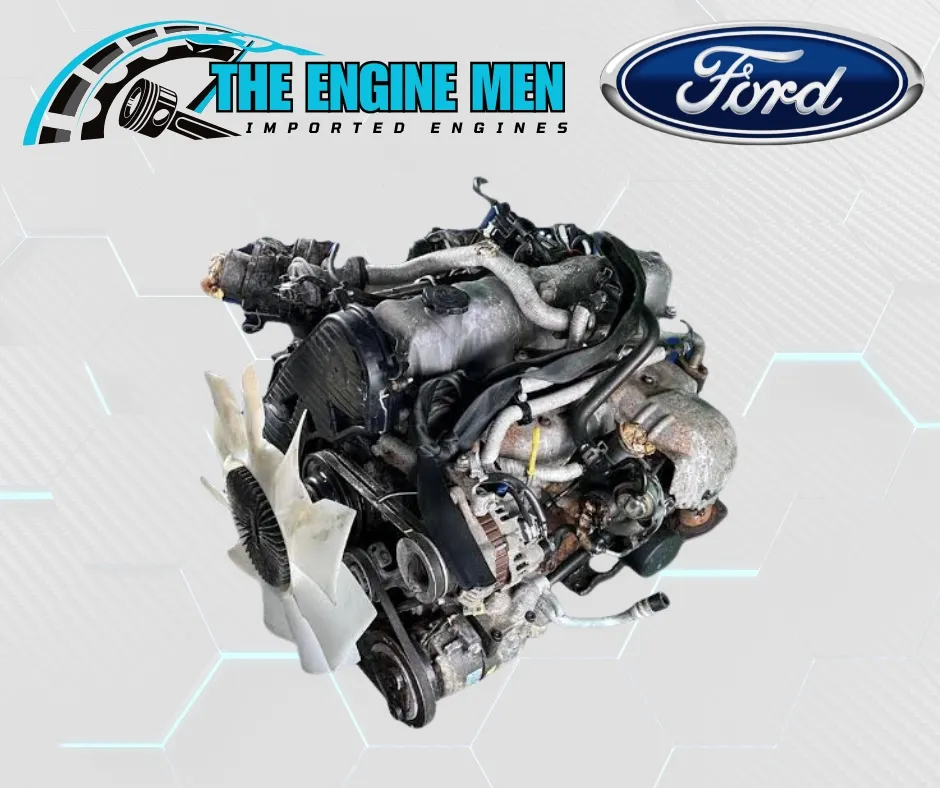

Ford Ranger 2.5 Non-Turbo Engine (WL Code) – Complete Engine Unit

Upgrade or restore your utility vehicle’s powertrain with the genuine Ford 2.5 Non-Turbo WL Engine. Renowned worldwide for its mechanical simplicity, rugged construction, and bulletproof dependability, the WL engine code is one of the most reliable naturally aspirated 2.5-liter diesel engines ever fitted to utility trucks. Designed for extreme working conditions, commercial hauling, and off-road fleet use, this engine delivers smooth low-end torque, simple serviceability, and long-term operating efficiency.

Engine Overview & Core Specifications

• Engine Code: WL (Naturally Aspirated)

• Displacement: 2.5 Liters (2,499 cc)

• Engine Family: Mazda / Ford WL Series

• Configuration: Inline 4-Cylinder, SOHC, 12 Valves (3 valves per cylinder)

• Fuel Injection: Mechanical Direct / Indirect Injection Pump

• Aspiration: Naturally Aspirated

• Horsepower: 78 hp (57 kW) to 87 hp (64 kW) @ 4,100 RPM

• Torque: 168 Nm to 175 Nm @ 2,200 RPM

• Fuel Type: Diesel

Key Features & Engineering Highlights

• Naturally Aspirated Simplicity: Eliminates the complexity of a turbocharger, significantly reducing potential failure points and offering a low-maintenance, long-lasting powertrain.

• Mechanical Fuel Injection Pump: Operates without complex electronic engine management or sensitive sensors, offering reliable performance and straightforward repairs even in harsh environments.

• Gear & Belt Timing Combination: Designed with a heavy-duty timing gear setup coupled with a simple overhead camshaft drive to ensure precise valve operation and high mechanical durability.

• Heavy-Duty Cast-Iron Construction: Built on a cast-iron cylinder block with an aluminum alloy cylinder head, engineered to withstand high thermal loads and heavy-duty commercial work.

Vehicle Compatibility The Ford 2.5 WL non-turbo engine is a direct replacement for various rear-wheel drive (4×2) and four-wheel drive (4×4) pickup trucks produced between 1998 and 2007:

• Ford: Ranger 2.5 D / 4×4 (ER, EQ, R series), Courier 2.5 D

• Mazda: B-Series B2500 / Bounty 2.5 D

(Note: Ensure your current setup is non-turbo, as this naturally aspirated WL engine differs in intake manifolds, exhaust setups, and compression from the turbocharged WL-T variant.)

Recommended Maintenance & Technical Guidelines

• Oil Specification: Requires high-grade diesel engine oil meeting 15W-40 or 10W-40 mineral or semi-synthetic specifications to keep internal components lubricated and wear-free.

• Preventative Care: Regular timing belt replacements, routine oil and filter changes, and keeping the fuel filter free of water contamination ensure maximum service life and uninterrupted operation
