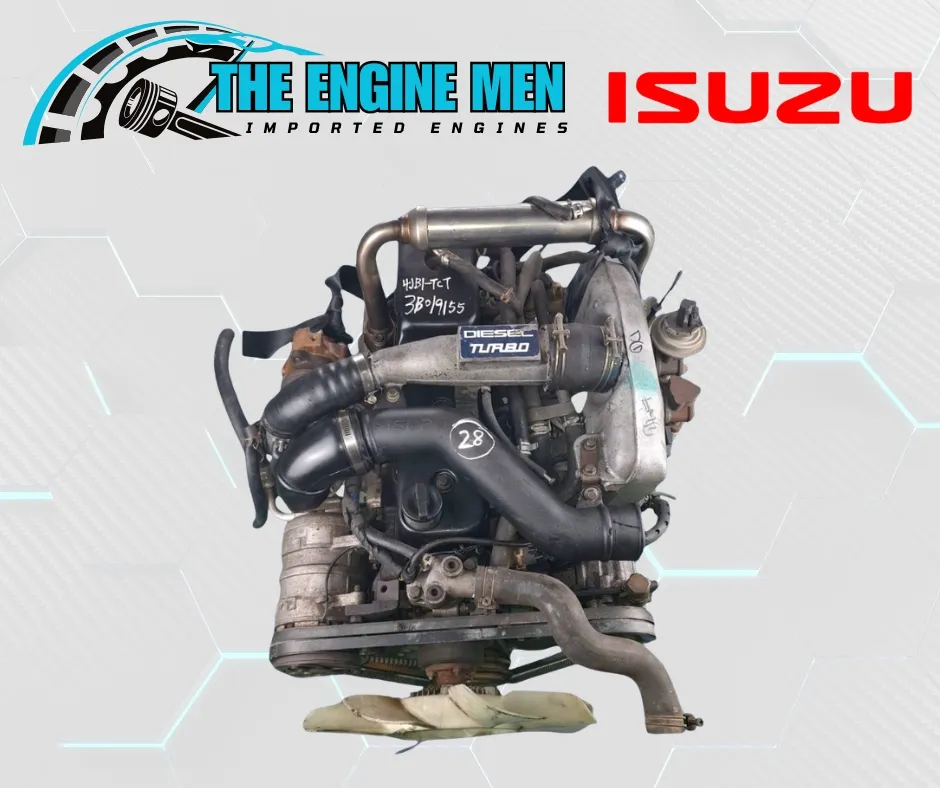

Isuzu 2.8d 4JB1 turbo Engine

Isuzu 2.8d 4JB1 turbo Engine identifies the diesel engine family and intended vehicle shown in this product listing. The 4JB1-T is the turbocharged version of Isuzu’s 2.8-litre J-series diesel, generally around 2,771 cc. Turbocharger and injection equipment distinguish it from the naturally aspirated 4JB1. The full engine specification can vary among commercial and pickup applications, so confirm the block code, turbo arrangement and fuel-pump calibration for the recipient vehicle.

Isuzu 2.8d 4JB1 turbo Engine engine details

• Engine code or family: 4JB1-t
• Fuel: Diesel
• Configuration: Inline four-cylinder
• Induction: Turbocharged
• Listed application: Isuzu 2.8d 4JB1 turbo Engine

For a diesel replacement, the full engine code and fuel-system configuration are central to fitment. Engine families may include several suffixes with differences in injection control, turbocharger, emissions equipment and calibration. Confirm the stamping on the block and compare it with the VIN or vehicle data plate. Where the listing uses a stock SKU or groups several variants, ask the supplier to identify the exact engine available and provide a clear photograph before ordering.

Fitment checks for 4JB1-t

Provide the vehicle model, chassis, year, transmission and 2WD/4WD details. Compare turbo position, exhaust manifold, intake pipework, injection pump, oil lines, sump and mounts. Confirm that the supplied engine is 4JB1-T rather than non-turbo and establish whether the turbocharger and intercooler parts are included. Some vehicles use donor-specific brackets and plumbing.

Compare the recipient and replacement as complete assemblies. Check gearbox interface, sump and mount locations, turbo and exhaust position, intake and charge-air connections, coolant outlets, accessory brackets and electrical connectors. Confirm whether injectors, high-pressure pump or mechanical pump, turbo, manifolds, sensors and engine loom are included. Determine which ancillaries need to transfer and have them inspected. A code that appears in the same broad engine family may still require vehicle-specific parts to match the chassis and emissions specification.

Preparing and installing a Isuzu 2.8d 4JB1 turbo Engine

Inspect the turbocharger, oil feed/return pipes, intake and exhaust, injection pump, injectors and cooling system. Clean the intercooler and intake path if the previous turbo failed. Check lubrication pressure and address overheating before installation. Once running, check boost leaks, smoke, oil pressure, fuel leaks and temperature. Avoid load testing until turbo lubrication and coolant circulation have been confirmed.

Before the replacement is started, address the original failure cause. Contaminated fuel, low oil pressure, turbo damage or overheating can affect parts that will be reused. Renew oil and filter and service other items according to the Land Rover, Isuzu or Hyundai/Kia procedure for the recipient vehicle. Check fluid levels, wiring grounds and fuel priming, then run a diagnostic scan. Confirm there are no fuel, oil or coolant leaks and verify stable temperature, idle and charging before road testing. This check is particularly relevant to turbo system and 4JB1-T equipment matching. Record the exact engine number and any parts transferred from the old unit on the repair paperwork, as those details can help identify service requirements later.

Order the correct Isuzu 2.8d 4JB1 turbo Engine

Send the VIN, engine number, model year, gearbox and drivetrain details with your enquiry. Ask the supplier to confirm the exact code, whether the unit is complete or a long block, and which fuel and turbo components are included. If the SKU differs from the engine code or the title lists several variants, resolve that discrepancy before arranging payment or installation. Browse the engine and gearbox catalogue and compare the supplied unit with the original.

For technical background, see Isuzu A-4JB1 workshop manual reference. It helps explain turbo system and 4JB1-T equipment matching, while the recipient VIN and stamped engine code confirm the required specification. Correct identification of the Isuzu 2.8d 4JB1 turbo Engine gives the workshop a reliable starting point for fitment and commissioning.
