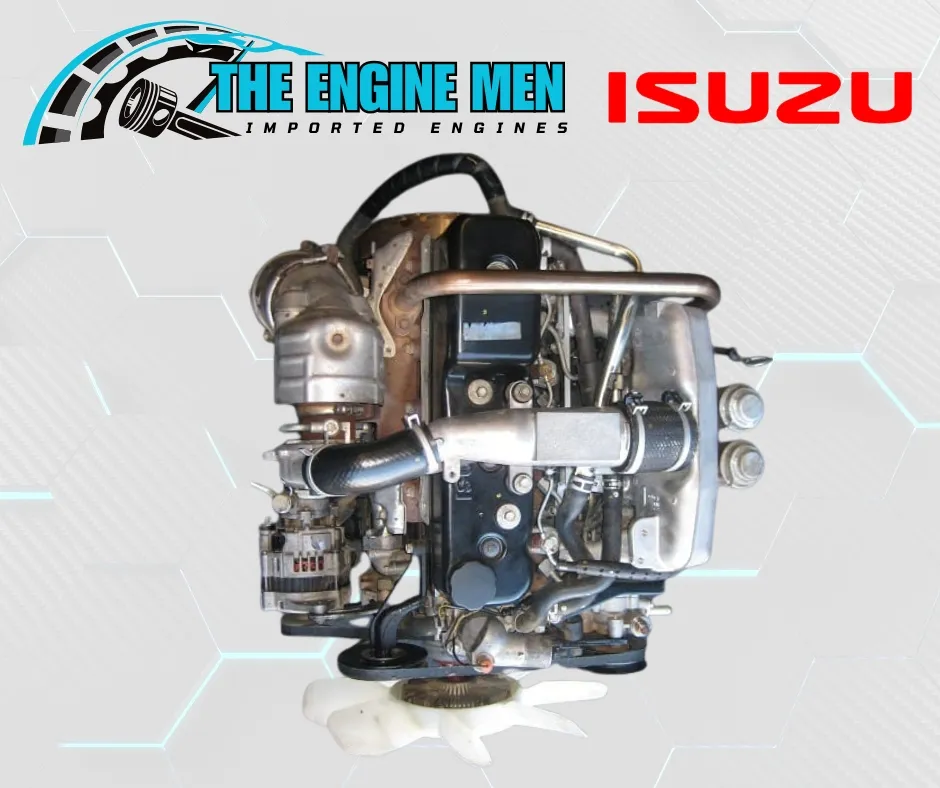

Isuzu 2.5td 4JA1 turbo Engine
R42,000.00
The Isuzu 4JA1 is a 2.5-litre, 4-cylinder, 4-stroke, water-cooled diesel engine. Renowned for its “bulletproof” simplicity and durability, it has been a staple in South African workhorses like the Isuzu KB250 and early D-Max models.
Core Technical Specifications
| Feature | Specification |
|---|---|
| Type | 4-Cylinder Inline, Overhead Valve (OHV) |
| Displacement | 2,499 cc (2.5L) |
| Bore x Stroke | 93 mm x 92 mm |
| Compression Ratio | 18.1:1 to 18.5:1 (depending on variant) |
| Valvetrain | SOHC, typically 8-valve (2 per cylinder) |
| Firing Order | 1-3-4-2 |
| Weight | Approximately 230–240 kg (dry) |
Performance Outputs
Performance varies significantly between the naturally aspirated (NA) and turbocharged (TD) versions:
- 4JA1 (NA): Approximately 55–60 kW (74–80 hp) and 170 Nm of torque.
- 4JA1-T (Turbocharged): Roughly 75–85 kW (100–114 hp) and 230–280 Nm of torque.
- 4JA1-L (Low-pressure Turbo): Often seen in older commercial fleets, producing around 58 kW and 176 Nm.
Key Engine Systems
- Fuel System: Features a direct injection system with a mechanical injection pump (typically Bosch A-type or VE-type). Later “TC” versions moved toward electronic control for emissions.
- Cooling System: Liquid-cooled using a radiator with a pressurized cap (93–122 kPa) and a thermostat-controlled “jiggle valve” to regulate flow.
- Timing Mechanism: Utilizes a timing belt driven by gears, which requires replacement every 90,000–100,000 km to prevent catastrophic engine damage.
- Construction: Features a robust cast iron cylinder block and an aluminum alloy cylinder head for thermal efficiency.
Notable Applications
The 4JA1 is primarily used in light commercial vehicles and utility pickups:
- Isuzu KB250 (Fleetside & LE models).
- Isuzu D-Max (Early generations).
- Isuzu NPR light trucks.
