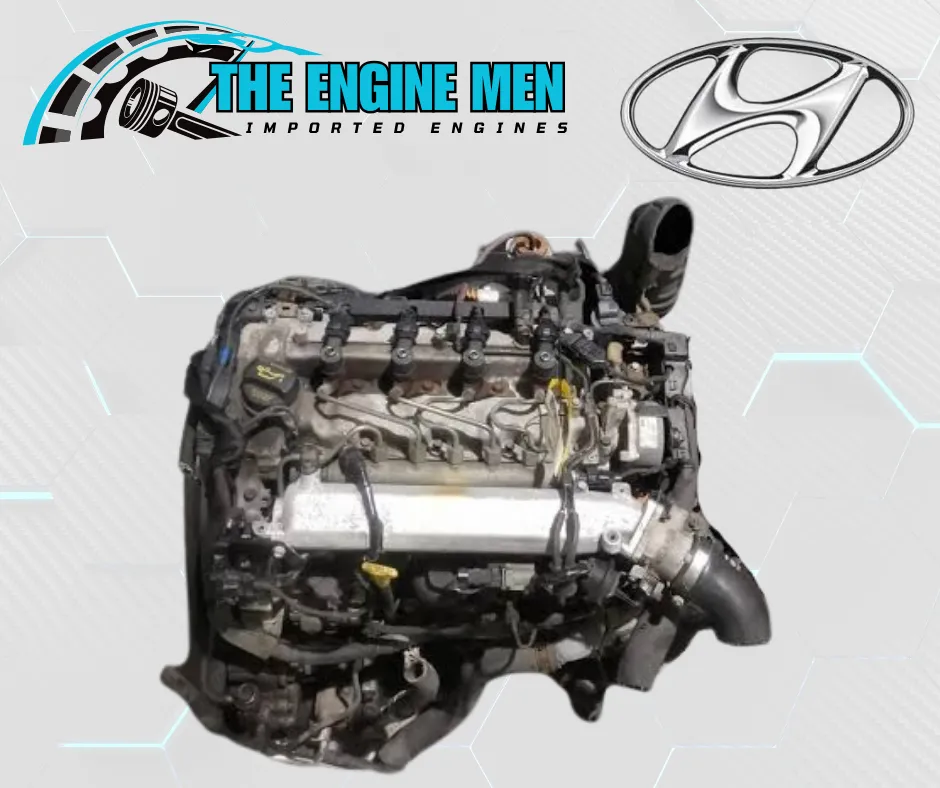

Hyundai 1.6 TDI D4FB – i30 Engine (Aluminium tappet cover)

Hyundai 1.6 TDI D4FB – i30 Engine (Aluminium tappet cover) refers to the 1.6-litre turbocharged common-rail CRDi diesel engine intended for 1.6 TDI D4FB – i30. D4FB is a 1.6-litre Hyundai U-family CRDi engine used in i30 and related models. The listing’s aluminium tappet-cover note is a visual cue; emissions and turbo versions still vary by year and market.

• Engine code: D4FB
• Listed capacity: 1.6-litre
• Fuel: Diesel
• Configuration: inline-four
• Induction/fuel system: turbocharged common-rail CRDi diesel
• Vehicle application: 1.6 TDI D4FB – i30
• Variant detail: D4FB is a 1

Hyundai 1.6 TDI D4FB – i30 Engine (Aluminium tappet cover) Code, fitment and service notes

Match the engine stamp to the VIN, production date, transmission and drivetrain before purchase. Confirm D4FB suffix, cover and sensor layout, turbo, DPF/EGR, injectors and vehicle wiring. Product names describe the intended application, but equipment can change by model year and market.

D4FB engine design and specification

D4FB is a 1.6-litre Hyundai U-family CRDi engine used in i30 and related models. The listing’s aluminium tappet-cover note is a visual cue; emissions and turbo versions still vary by year and market. The stated turbocharged common-rail CRDi diesel and inline-four layout help distinguish this unit from other engines with a similar capacity. Full code suffixes can still change injection, timing, turbo, emissions equipment or calibration. Confirm the donor version and whether the seller supplies a long block or a dressed engine.

Check whether the cylinder head, intake, exhaust, fuel equipment, sensors and engine wiring match the recipient. Turbo models also require compatible boost plumbing and turbo oil/coolant connections. Do not assume shared displacement or a related family name makes another code a direct replacement.

D4FB fitment for 1.6 TDI D4FB – i30

Confirm D4FB suffix, cover and sensor layout, turbo, DPF/EGR, injectors and vehicle wiring. Confirm the donor body style, gearbox and drive layout. Front-, rear- and all-wheel-drive versions may use different sumps, mounts and brackets; commercial vehicles can also have different cooling and accessory layouts.

Compare the original and replacement mounts, sump, gearbox interface, intake and exhaust routing, sensor plugs, fuel connections and accessory positions. Confirm which ancillaries are supplied and which must transfer. Photograph connectors and label parts before dismantling.

What to verify before ordering Hyundai 1.6 TDI D4FB – i30 Engine (Aluminium tappet cover)

Ask for the stamped engine code, donor details and a VIN-based compatibility check. D4FB is a 1 If the listing abbreviates a code or groups variants, have the supplier identify the exact assembly in writing.

Check included injectors, fuel pump or rail, turbo where fitted, manifolds, sensors, loom and brackets. Verify ECU/immobiliser, emissions equipment and transmission compatibility. A workshop can compare donor and recipient part numbers before removing the original unit.

Choosing a D4FB replacement

A replacement may be appropriate after internal damage, low compression, bearing failure, overheating or excessive oil consumption when rebuilding is uneconomical. First diagnose the original failure: a blocked oil feed, cooling fault, contaminated fuel system or failed turbo can damage the replacement if left unresolved.

Confirm the assembly’s condition, included parts, warranty and any checks required before installation. Record the donor code and transferred components for future servicing.

Installation and commissioning

Use service information for the exact vehicle and engine version. Inspect accessible seals, hoses and connectors. Fit fresh oil and filter unless service history is verified, and check the radiator, thermostat, water pump, fuel lines and intake for contamination or damage.

Seat the mounts without strain, align the gearbox connection and reconnect grounds, sensors, fuel lines and charge-air pipes to the correct ports. Refill and bleed cooling circuits and prime oil or fuel systems as specified for this engine. Follow any required ECU coding procedure.

At first start, monitor oil pressure, coolant circulation, idle and diagnostic data. Check for leaks, smoke, misfires, abnormal noise and warning lights. Once the engine reaches operating temperature, recheck fluids and scan the control modules before a cautious road test.

Service checks for the D4FB engine

Follow the recipient vehicle’s fluid and service specifications. Diesel installations need clean fuel, correct injector operation and sound turbo/emissions parts. Turbo petrol units require attention to oil lines, boost hoses and ignition. Check the timing drive, cooling system and intake sealing on all versions.

Keep the engine code, VIN check, transferred parts and diagnostic results with the service record. Investigate warning codes before extended driving.

Order the correct Hyundai 1.6 TDI D4FB – i30 Engine (Aluminium tappet cover)

Provide the VIN, model year, gearbox, drivetrain and a photo of the engine stamp. Confirm the full code and included components before ordering. Browse the engine and gearbox catalogue to compare the listing with your original.

For service and application information, consult Hyundai technical and owner documentation. Confirm parts and procedures for the vehicle identification number before fitting.
