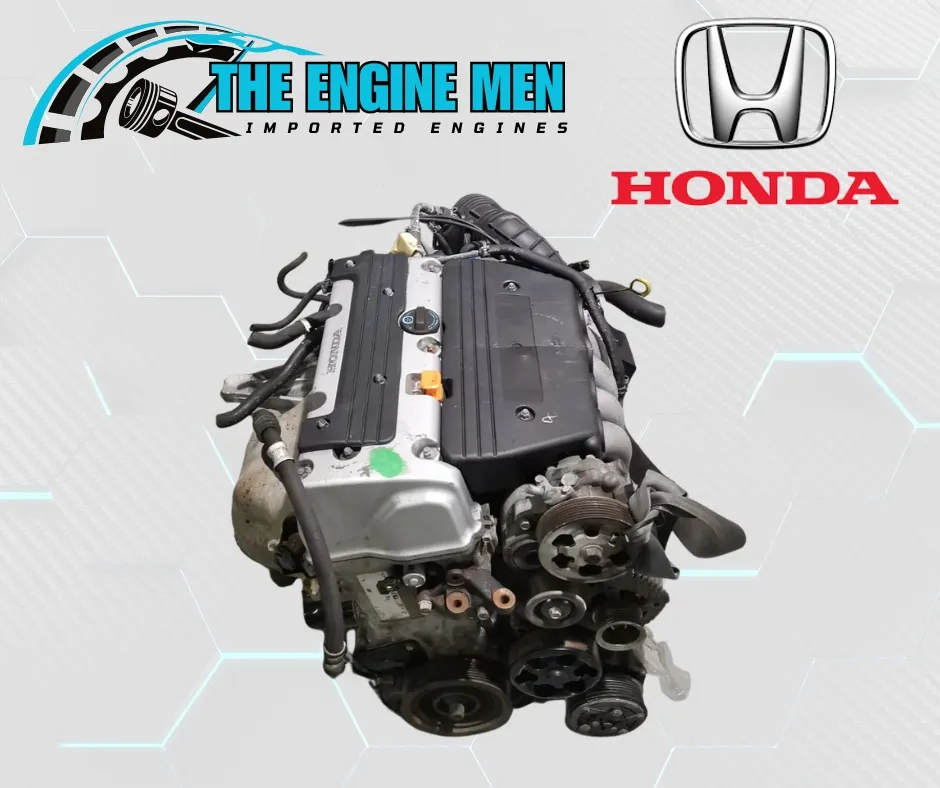

Honda CRV / Civic / Accord 2.0L K20A engine
R15,500.00
The Honda K20A is one of the most famous 2-litre, 4-cylinder petrol engines in automotive history. Part of the K-Series family introduced in 2001, it replaced the older B-series and is renowned for its “bulletproof” reliability and high-revving performance.
Technical Specifications
The K20A uses a DOHC (Double Overhead Cam) 16-valve design and a high-strength aluminium block.
| Feature | Specification |
|---|---|
| Displacement | 1,998 cc |
| Configuration | Inline 4-cylinder, 16-valve |
| Valvetrain | DOHC i-VTEC (Intake and Exhaust) |
| Timing System | Timing Chain (no belt) |
| Bore x Stroke | 86.0 mm x 86.0 mm (“Square” engine) |
| Induction | Naturally Aspirated |
The Two Faces of the K20A
It is important to distinguish between the “Economy” versions found in family cars and the “Performance” versions found in Type R models:
- Economy/Standard (CR-V, Civic, Accord):
- Focus: Fuel efficiency and low-end torque.
- VTEC System: Often uses “VTEC-E,” where only one intake valve opens at low RPM to save fuel, and both open at higher RPM.
- Power: Typically 110 kW to 118 kW (150–158 hp).
- Redline: Usually around 6,800 rpm.
- Performance (Civic Type R EP3/FD2, Integra DC5):
- Focus: Maximum power and high-RPM screaming.
- VTEC System: “True” high-lift VTEC on both intake and exhaust cams.
- Power: 158 kW to 164 kW (212–220 hp).
- Redline: Up to 8,400–8,600 rpm.
Key Design Features
- i-VTEC: Combines Variable Valve Timing (VTEC) with Variable Timing Control (VTC). VTC allows the intake cam to advance or retard continuously, making the engine much more flexible in daily traffic compared to older Hondas.
- Reverse Layout: Unlike older Honda engines that rotated anti-clockwise and sat on the right side of the bay, the K20A rotates clockwise and sits on the left (passenger) side.
- Coil-on-Plug: Uses individual ignition coils for each cylinder, removing the need for a distributor and improving spark reliability.
Common Maintenance & Issues
- Timing Chain Tensioner: While the chain is durable, the hydraulic tensioner can wear out on high-mileage units (over 200,000 km). If it fails, the chain can “jump” a tooth, causing engine damage.
- Oil Consumption: High-revving K20A engines can consume oil. It is critical to keep the oil topped up, as the VTEC system relies on oil pressure to engage.
- Valve Clearances: Unlike many modern engines with hydraulic lifters, the K20A requires a manual valve adjustment roughly every 45,000–60,000 km to prevent a “ticking” noise and maintain power.
- Camshaft Galling: Early K20A units (pre-2004) occasionally suffered from pitting on the exhaust camshaft lobes due to oil starvation or poor hardening.
