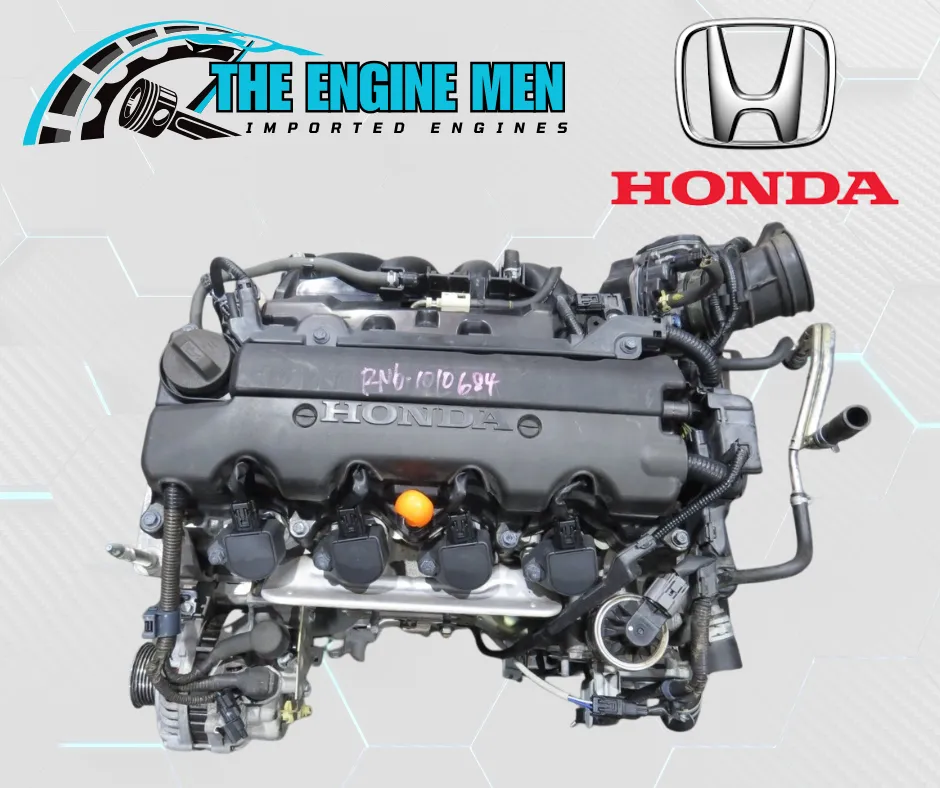

Honda 1.8 R18A Engine
R19,500.00
The Honda R18A is a 1.8-litre, inline four-cylinder, naturally aspirated petrol engine belonging to Honda’s efficient R-series family. Introduced around 2006 to succeed the older D-series and early B-series blocks, it became the standard global powerplant for the eighth-generation Honda Civic (FD1) and select global crossovers.
The R18A was designed from the ground up to minimize friction, improve thermal efficiency, and deliver smooth mid-range power for everyday driving while meeting strict international emissions standards.
Engineering and Structural Design
The R18A uses a lightweight aluminium engine block and cylinder head, optimized for reduced weight and rapid warm-up times.
- Valvetrain Layout: It features a Single Overhead Camshaft (SOHC) operating 16 valves, controlled by a durable, maintenance-free timing chain.
- i-VTEC with Economy Control: Unlike traditional high-RPM VTEC systems designed purely for maximum power, the R18A’s i-VTEC system is tuned for fuel economy. During cruising and light-throttle applications, the engine delays closing one of the intake valves, allowing a portion of the intake charge to be pushed back into the manifold. This significantly reduces pumping losses and improves fuel mileage.
- Intelligent Thermal Management: It includes a dual-stage oil pump and integrated cooling passages designed to bring the engine up to its optimal operating temperature as fast as possible, lowering cold-start friction and emissions.
Induction and Exhaust Layout
The R18A flips the traditional packaging layout to maximize efficiency in compact engine bays.
- Forward-Facing Intake: The intake manifold is positioned at the front of the engine, routing cool outside air directly into the combustion chambers.
- Integrated Exhaust Manifold: The exhaust manifold is cast directly into the aluminium cylinder head and exits toward the rear of the engine bay, placing the catalytic converter very close to the combustion chamber for quick light-off during cold starts.
Performance Profile and Character
The engine is tuned to offer a responsive, flexible powerband that feels punchy in city traffic while remaining quiet and refined on long highway cruises.
- Power Output: Typically produces 140 horsepower (103 kW) at 6,300 RPM.
- Torque Output: Delivers around 174 Nm (128 lb-ft) of torque at 4,300 RPM.
- Compression Ratio: Set at a high 10.5:1 to maximize the energy extracted from standard unleaded petrol.
