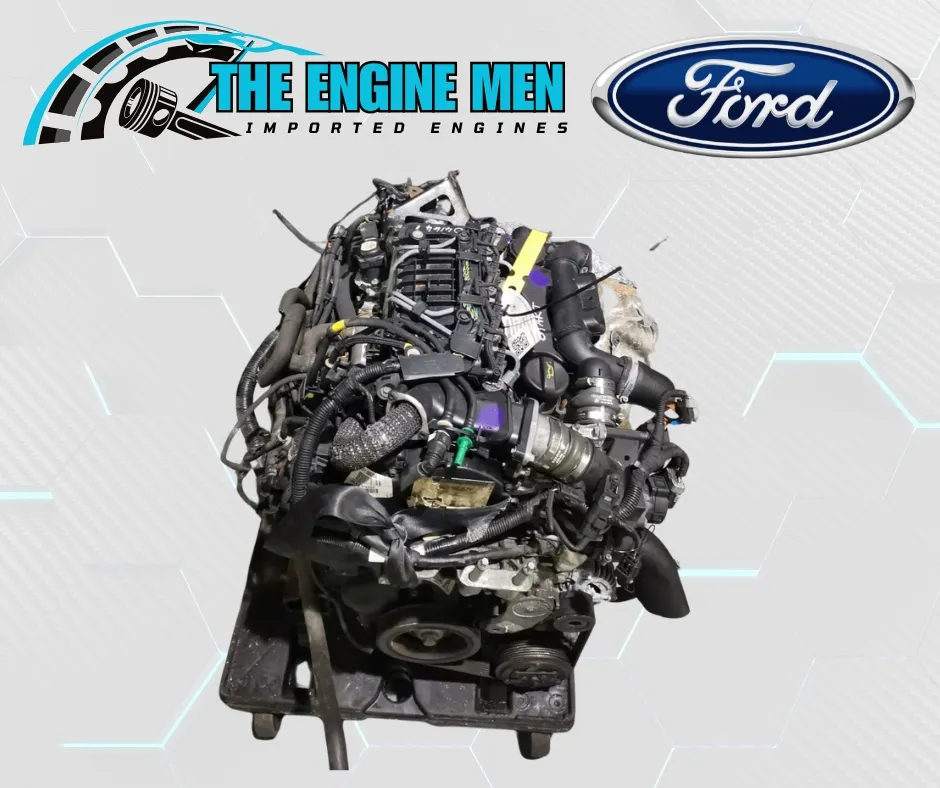

Ford 1.6tdci G8DA/G8DB/HHDA/HHJC engine

Ford 1.6tdci G8DA/G8DB/HHDA/HHJC engine is the replacement-engine listing for the Ford model and code shown in its name. HHDA, G8DA, G8DB and HHJC are codes found across Ford 1.6 TDCi applications, but they do not all indicate identical output or equipment. The family is related to the PSA DV6 and uses turbocharged common-rail diesel injection. Some G8DA/G8DB versions are associated with about 80 kW (109 PS), while HHDA is commonly a lower-output version. Confirm the complete code.

Ford 1.6tdci G8DA/G8DB/HHDA/HHJC engine specifications and identification

• Engine code: HHDA/G8DA
• Displacement class: 1.6td
• Fuel: Diesel
• Induction: Turbocharged
• Listed application: Ford 1.6tdci G8DA/G8DB/HHDA/HHJC engine

Ford used related engine families across several generations and regional model ranges. Engine code, production date and vehicle identification are more reliable than a general description such as “1.4 Fiesta” or “2.0 TDCi.” Some product titles also group different codes together. Ask the seller to confirm the code stamped on the actual engine and whether it matches the recipient car’s calibration, emissions system and transmission. A shared capacity does not by itself establish that a replacement is a direct fit.

Fitment checks for HHDA/G8DA

Use the VIN and model year to identify Focus, C-Max or other application. Compare the full engine code, turbocharger, injectors, EGR/DPF equipment, intake, sump, mounts and wiring. A 90 PS and a 109 PS 1.6 TDCi may share core architecture but have different ancillaries or ECU calibration. Ask the supplier which code and components are actually supplied.

Before ordering, compare the old and replacement engines as assemblies. Check sump clearance, mount brackets, gearbox interface, starter position, alternator and air-conditioning brackets, intake and exhaust connections, coolant outlets and sensor plugs. Confirm whether the supplied unit includes its turbocharger or injection equipment, manifolds, fuel rail, injectors, sensors and wiring. If parts need to be transferred, identify them in advance and have the workshop assess their condition. Request written confirmation when the listing includes multiple codes or model families.

Preparing and installing the HHDA/G8DA engine

Check the turbo oil feed, crankcase ventilation, intercooler and common-rail components before reuse. Inspect the DPF and EGR system and resolve any restriction or lubrication issue that contributed to engine damage. Use the correct diesel oil and filter for the vehicle. Once installed, scan for injector corrections, rail pressure, boost and emissions codes, then check for smoke, oil leaks, uneven running and turbo noise.

Use the correct service data for the exact recipient vehicle when selecting oil, coolant, filters and installation procedures. Repair the original fault before startup. Check for leaks around the engine, fuel connections, cooling circuit and lubrication system, then scan the ECU for stored or pending codes. Record any warning lights or abnormal sounds rather than continuing to run the engine. A careful first-start inspection can catch wiring, fuel, boost or cooling problems while they are still straightforward to correct.

Order the correct Ford 1.6tdci G8DA/G8DB/HHDA/HHJC engine

When enquiring, send the VIN, engine code, model year, gearbox details and a photograph of the original stamping. Ask whether the supplied unit is a complete engine or a long block and confirm the included components. For code discrepancies in the product name, confirm exactly which variant is available before paying or arranging installation. Browse the current engine and gearbox catalogue and compare the replacement with the vehicle specification.

For technical background, consult Ford 1.6 Duratorq TDCi workshop data. This information helps explain G8DA/HHDA output variants and common-rail component matching, while final fitment should be established from the stamped engine code and recipient VIN. A correctly identified Ford 1.6tdci G8DA/G8DB/HHDA/HHJC engine gives the installer a clear basis for matching components and planning commissioning.
