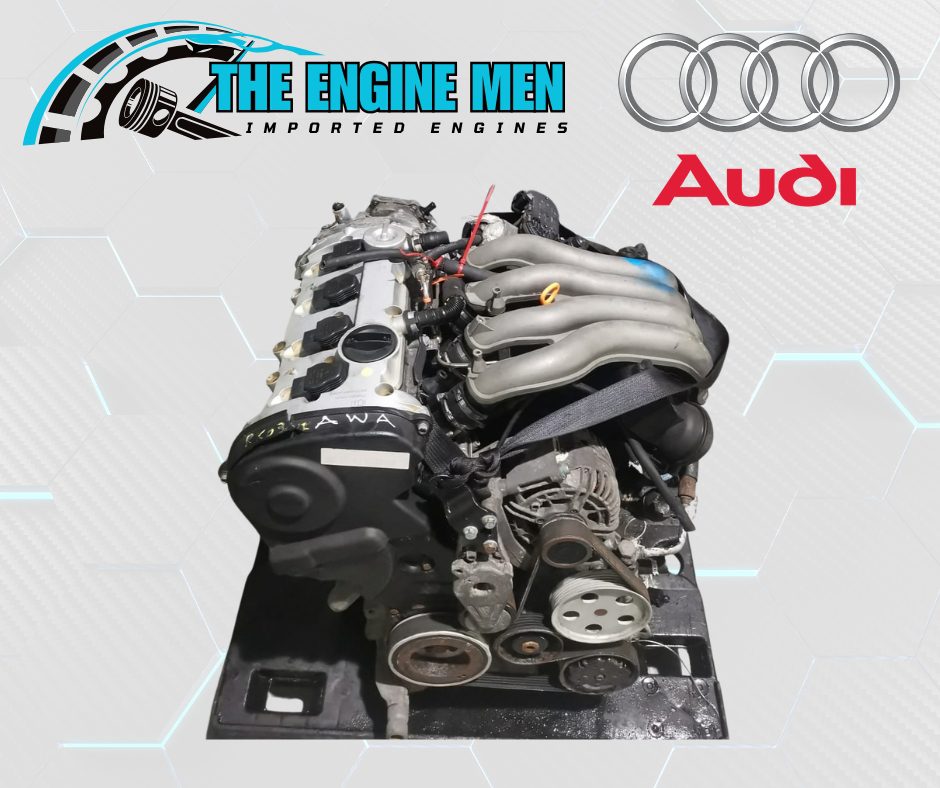

Audi A4 2.0tfsi AWA engine

Audi A4 2.0tfsi AWA engine is the catalogue name for the naturally aspirated 2.0-litre FSI petrol engine used in selected Audi A4 applications. The AWA code is especially important here because the product title uses “TFSI,” a label many buyers associate with turbocharged engines. The AWA is generally identified as a non-turbo FSI unit. Confirm the stamp on the supplied engine and the original vehicle specification before treating the listing title as a complete technical description.

Audi A4 2.0tfsi AWA engine specifications

• Code: AWA
• Capacity: 1,984 cc (2.0 litres)
• Configuration: Inline four-cylinder, 16-valve petrol
• Fuel delivery: FSI direct injection
• Aspiration: Naturally aspirated
• Listed vehicle: Audi A4

The AWA combines direct petrol injection with a naturally aspirated intake system. That difference affects the fuel hardware, intake and exhaust parts, ECU calibration and replacement-engine comparison. The engine is also associated with a longitudinal A4 installation, unlike many transverse 2.0-litre units from the same wider Volkswagen Group era. A similar capacity or a generic “2.0 FSI” description is not proof of interchangeability.

Where the AWA fits in the Audi A4 range

AWA was used in specific A4 B6 applications and varies by market and production period. Confirm whether the car is a saloon, Avant or Cabriolet, the model year, gearbox and front-wheel-drive or quattro configuration. Cross-check the VIN and original engine stamp with the replacement. Also compare the sump shape, engine mounts, accessory brackets, exhaust routing and cylinder-head connections. If the vehicle currently carries a different engine code, request a parts-based interchange check instead of relying on model name alone.

Before purchase, look closely at the direct-injection components: high-pressure pump, fuel rail, injectors, wiring plugs, sensors and intake manifold. Confirm which of these parts are supplied. Listings may be for a long block or a more complete engine assembly, and the photographs do not always show every included component. Ask whether the original throttle body, alternator, starter, brackets and ancillary equipment must be moved across. Any transfer should be checked for condition and compatibility.

Replacement planning for the AWA configuration

A replacement is most useful when the original engine has suffered serious internal damage or repair is no longer economical. First identify the failure cause. Overheating, low oil pressure, lubrication problems or contamination in the fuel or intake system can damage the next engine if left unresolved. Have the cooling system, radiator, thermostat, water pump, hoses, oil cooler and crankcase ventilation inspected as appropriate. Use the service information for the exact AWA application when selecting oil, coolant and replacement parts.

At installation, compare the old and replacement assemblies side by side before fitting. Check sensor locations, electrical connectors, fuel connections, sump clearance, mount positions, exhaust flanges and accessory-drive arrangement. Use new service items where appropriate and follow the workshop procedure for filling and priming the lubrication system. After first start, scan the engine control unit, confirm fuel-pressure and sensor readings, and inspect for leaks, misfires, rough idle or abnormal engine noise. Do not road-test until the installer has checked temperature behaviour and fault codes.

Ordering an AWA replacement

Send the VIN and a clear photograph of the AWA stamp with your enquiry. Ask the supplier to confirm that the available engine is naturally aspirated and direct-injected, then verify the exact components included and the intended transfer parts. This is particularly important because the product title contains “TFSI,” while AWA is commonly listed as the non-turbo 2.0 FSI variant. Browse the current engine listings and compare the unit against your vehicle before ordering.

For background on the Volkswagen Group 2.0-litre FSI design, consult this 2.0-litre FSI technical training reference, then rely on the VIN and stamped code for the actual replacement decision. A correctly matched Audi A4 2.0tfsi AWA engine should agree with the recipient car’s injection system, drivetrain and installation hardware.
