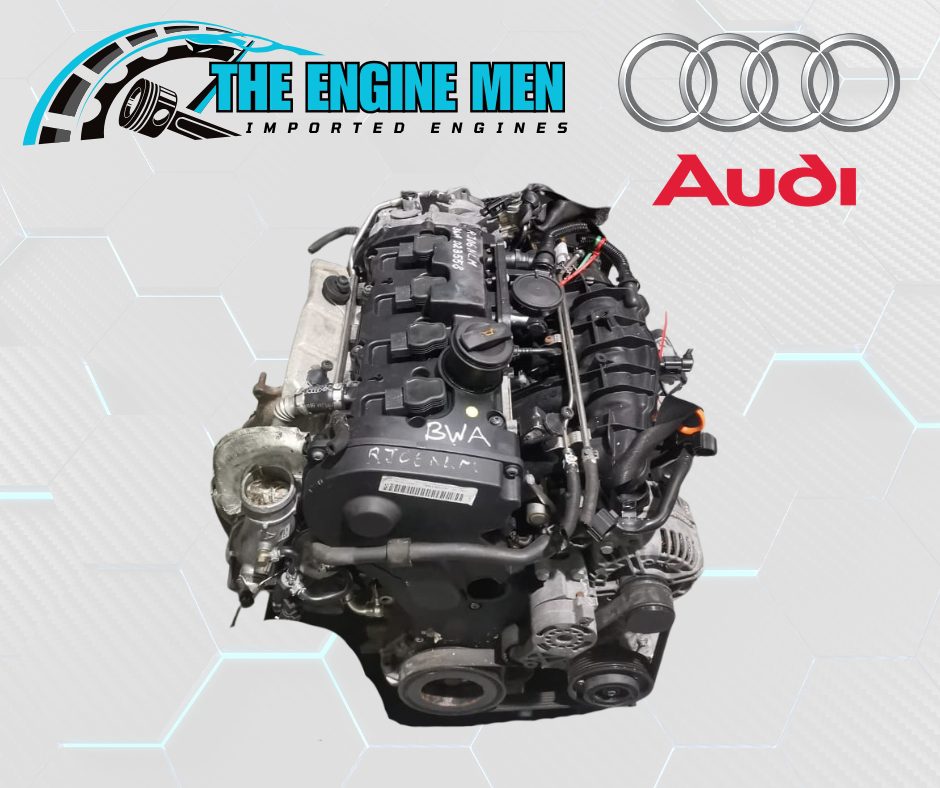

Audi A3 2.0tfsi BWA engine

Audi A3 2.0tfsi BWA engine identifies a turbocharged 2.0-litre petrol engine with direct injection. The BWA belongs to the EA113-generation TFSI family and is not the same configuration as naturally aspirated AWA or ALT engines. When replacing a BWA, match the code and the A3’s transverse installation together: turbo equipment, injection components, gearbox and electrical configuration all matter.

Audi A3 2.0tfsi BWA engine specifications

• Engine code: BWA
• Displacement: 1,984 cc
• Layout: Inline four-cylinder, 16 valves
• Fuel and induction: Petrol, turbocharged, direct injection
• Engine family: EA113 TFSI
• Listed application: Audi A3

Many BWA applications are rated around 147 kW, though output and equipment can vary with market, model year and calibration. This is a transverse engine installation in the A3, so it should not be assumed to interchange with a longitudinal Audi A4 engine that happens to share 2.0-litre capacity. Some related BWA applications appear in other Volkswagen Group models, but the A3’s own hardware and control setup must be matched.

How to verify BWA compatibility

Start with the complete engine code stamped on the block, the VIN, production year, gearbox and front-wheel-drive or quattro layout. Compare the turbocharger, exhaust manifold, intake manifold, high-pressure fuel pump, injectors, fuel rail, sump, engine mounts and accessory brackets. Check the ECU and wiring connectors, because a mechanically similar engine may use different sensors or emissions-related equipment. If the old engine carries a code other than BWA, get written confirmation that the proposed alternative fits the exact recipient vehicle.

Establish what is included before ordering. A replacement may arrive as a long block rather than a complete assembly. Ask specifically about the turbo, manifolds, fuel equipment, sensors, alternator, starter, wiring and brackets. Compare product photographs with the original engine, but use the supplier’s parts list to confirm the package. Inspect any components being reused and replace worn or contaminated parts rather than transferring them automatically.

Turbo-system checks before fitting

Because BWA is turbocharged, inspect the oil feed and return lines, intake tract, charge pipes and intercooler before installation. A failed turbo can leave oil or debris in the intake system, so cleaning and diagnosis should be part of the repair plan. Check the cooling and lubrication systems, ignition coils and plugs, crankcase ventilation and direct-injection fuel system. The original failure cause should be resolved before the replacement is started.

Use the correct oil and filter, follow the workshop procedure for priming and first start, and scan the control unit once the engine is running. Check for oil pressure, fuel leaks, coolant leaks, misfires, rough idle, warning lights and abnormal smoke. Confirm all boost hoses and sensor connections before a road test. These checks help distinguish an installation issue from an engine fault and reduce the chance of damaging a replacement through an unresolved system problem.

Order the Audi A3 BWA engine by code

Provide the VIN, gearbox details and a photograph of the original BWA code when requesting fitment confirmation. Ask which turbo and fuel-system components are supplied and which must be transferred from the old engine. View the available engines and confirm that the replacement matches the A3’s precise model-year configuration.

For workshop diagnostics and engine-electronics context, see the Ross-Tech reference for the 2.0 TFSI family including BWA. Use that technical background alongside vehicle-specific service data when checking a replacement. The right Audi A3 2.0tfsi BWA engine is one with a confirmed code, matching transverse layout and compatible supporting equipment.

One useful comparison is the original engine’s position and complete accessory arrangement. The BWA sits across the A3 engine bay, so a donor from a longitudinal platform may have a different sump, mount pattern, exhaust route and ancillaries even where the basic engine family sounds similar. Bring the removed engine’s code label and a photo of its turbo and manifold layout to the fitment check. If the recipient uses quattro or a different gearbox, confirm those details before transport or installation so the workshop can plan the right combination of parts.
