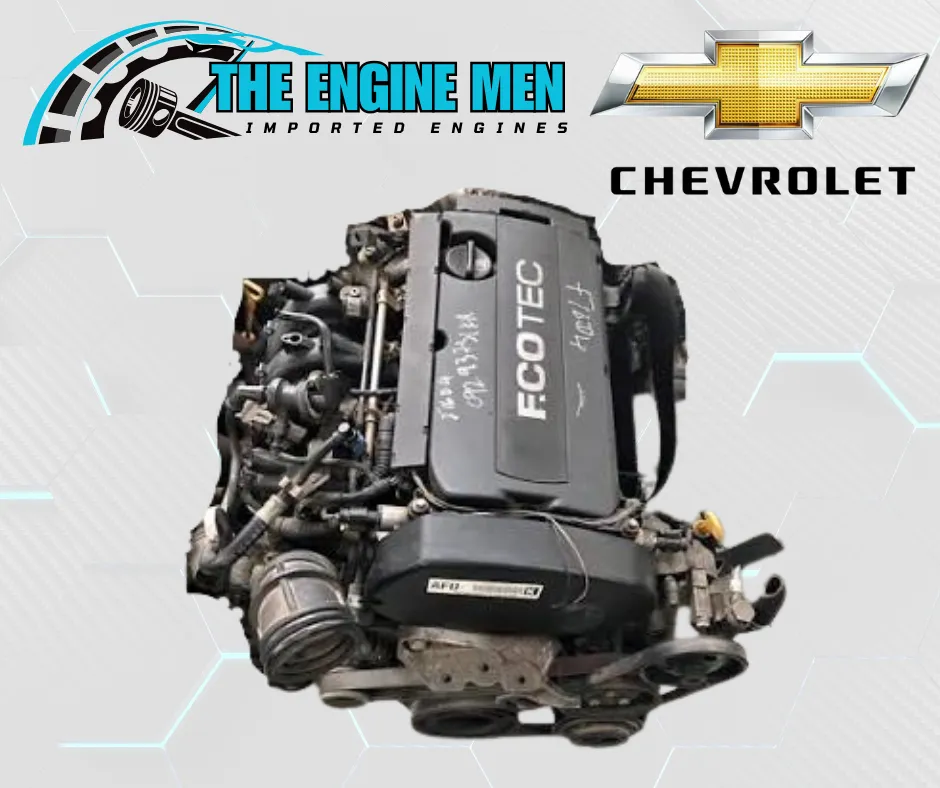

Chevrolet Cruze 1.6 F16D4 Engine
R24,500.00
The Chevrolet F16D4 engine is a 1.6-litre, naturally aspirated inline-four petrol engine belonging to the GM Family 1 series. It is a modernized version of the older F16D3 engine, updated with variable valve timing to improve power and fuel efficiency. It typically produces 91 kW (124 hp) and 155 Nm of torque in the Chevrolet Cruze.
Key Technical Specifications
- Configuration: Inline 4-cylinder, DOHC (Double Overhead Camshaft), 16 valves.
- Displacement: 1.6 litres (1,598 cc).
- Block Material: Cast iron block with an aluminum cylinder head.
- Valvetrain: Variable Valve Timing (VVT) on both intake and exhaust camshafts (DCVCP system).
- Intake System: Variable Geometry Intake Manifold (VIM) to boost low-end torque.
- Timing Drive: Belt-driven system. The timing belt requires replacement every 60,000 to 90,000 km depending on driving conditions.
- Lifters: Solid buckets (shims/mechanical lifters). It does not have hydraulic lifters, requiring mechanical valve clearance adjustment every 100,000 km.
- Brother Engine: It is structurally almost identical to the 1.8-litre F18D4, sharing the same engine block architecture but utilizing a smaller cylinder bore and stroke. It is also identical to the Opel A16XER / Z16XER engine.
Common Problems & Vulnerabilities
While structurally robust due to the cast iron block, the F16D4 has several well-documented weak points that owners should monitor:
- Oil Cooler (Heat Exchanger) Leaks: The internal rubber gaskets fail regularly. This causes engine oil to leak into the cooling system, resulting in a brown “sludge” or “milkshake” appearance in the coolant expansion tank.
- VVT Solenoid & Gear Rattling: The variable valve timing gears can wear out or become clogged due to poor oil quality. This causes a distinct metallic rattling or knocking sound for a few seconds during a cold start.
- Valve Cover Gasket Leaks: The rubber gasket hardens quickly, leaking oil into the spark plug wells. This often leads to engine misfires.
- Ignition Coil Pack Failure: The engine uses a single-piece cassette coil pack. If one cylinder’s coil fails, the entire module must be replaced.
- Thermostat Housing Failure: The original plastic thermostat housing is prone to cracking and leaking. Upgrading to an aftermarket aluminum housing is a highly recommended fix.
