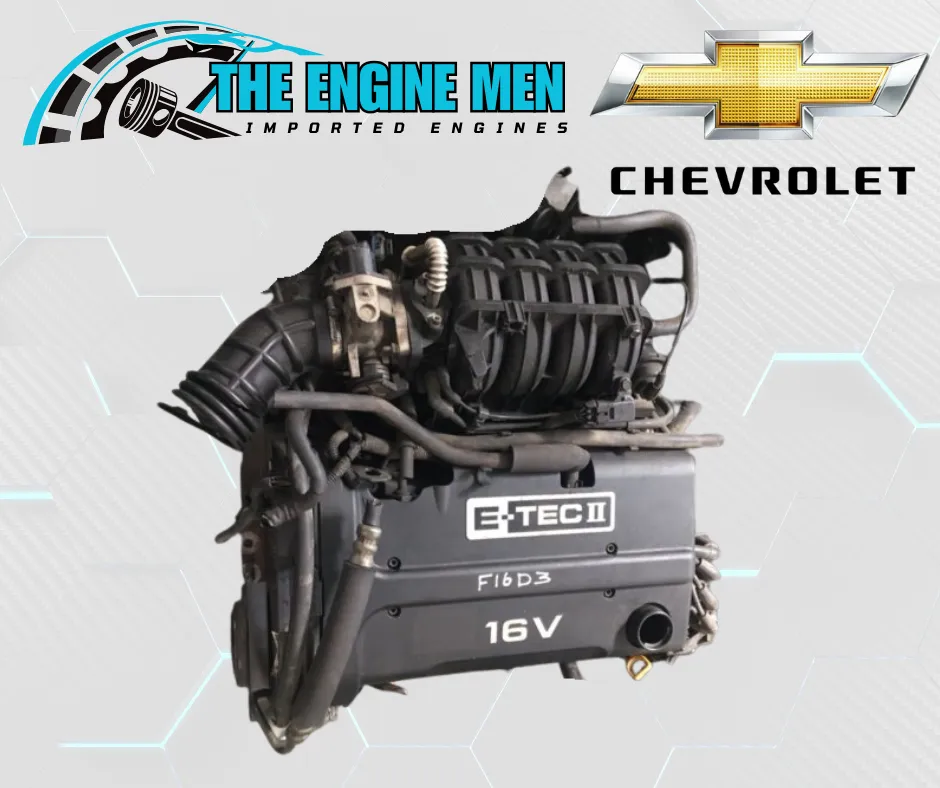

Chevrolet 1.6 F16D3 Engine
R22,500.00
The Chevrolet 1.6-litre F16D3 engine is a naturally aspirated inline-four petrol engine belonging to the GM Family 1 series. Developed by Daewoo, this 16-valve dual overhead cam (DOHC) engine is the older predecessor to the later F16D4 engine. In most local applications, it generates 80 kW (109 hp) and 150 Nm of torque.
Key Technical Specifications
- Configuration: Inline 4-cylinder, DOHC (Double Overhead Camshaft), 16 valves total (4 valves per cylinder).
- Displacement: 1.6 litres (1,598 cc).
- Block Material: Heavy-duty cast iron block with an aluminum alloy cylinder head.
- Valvetrain Layout: Standard dual cams without Variable Valve Timing (VVT), making it simpler but less efficient than the later D4 generation.
- Timing Drive: Timing belt system, requiring replacement every 60,000 km along with the tensioner and idler pulleys.
- Lifters: Hydraulic lifters (hydraulic valve lash adjusters), meaning it self-adjusts and does not require manual valve clearance maintenance.
Common Vehicle Applications
This engine was a primary workhorse across several mid-2000s to early-2010s GM and Chevrolet passenger cars globally and in South Africa, including:
- Chevrolet Aveo 1.6 (T200 / T250 generations)
- Chevrolet Cruze 1.6 (Early 2009–2011 base models before the F16D4 rollout)
- Chevrolet Optra 1.6 (J200 models)
- Daewoo Lacetti / Nubira 1.6
Common Problems & Vulnerabilities
While mechanics appreciate the F16D3 for its simplicity and cheap replacement parts, it suffers from several classic design flaws:
- Carbon Buildup on Valves: This engine is notorious for sticky valves. Carbon deposits build up on the valve stems, preventing them from sealing properly, which triggers random misfires (often throwing trouble codes P0300).
- Timing Belt Snap Risk: This is a strict interference engine. If the timing belt snaps or the plastic tensioner pulley breaks, the valves will slam into the pistons, wrecking the cylinder head.
- Valve Cover Gasket Leaks: The rubber valve cover gasket hardens quickly and leaks oil. This oil pools inside the spark plug wells, causing the spark plug leads to deteriorate and creating a severe engine misfire.
- EGR Valve Clogging: Unlike the later F16D4, the D3 utilizes an Exhaust Gas Recircirculation (EGR) valve. It frequently clogs with soot, leading to a rough idle, hesitations during acceleration, and poor fuel economy.
