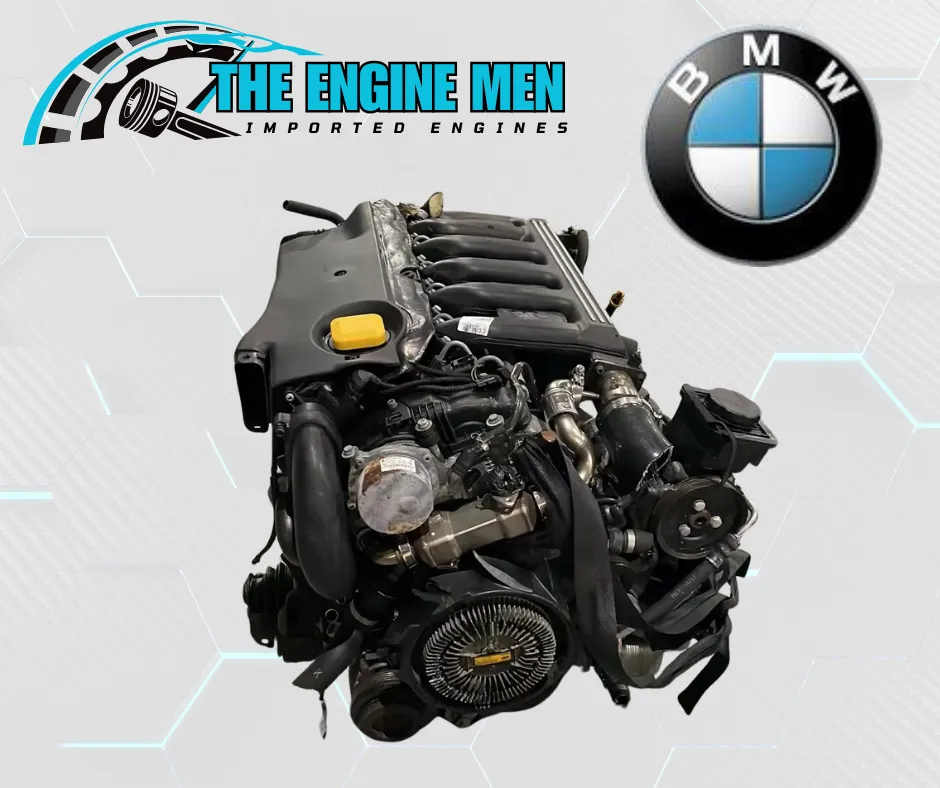

BMW 330d Pre Facelift 306D1 Engine
R26,500.00
The BMW M57D30 (specifically the 306D1 variant) is a 3.0-litre, turbocharged, inline 6-cylinder diesel engine. Produced from 1998 to 2002, this legendary power unit was featured in the pre-facelift BMW E46 330d (and 330xd), as well as contemporary E39 5-series and E38 7-series models. It is highly regarded by automotive enthusiasts as one of the most reliable and over-engineered diesel engines ever built.
Core Engineering Design
The 306D1 represents the first generation of BMW’s highly successful M57 engine family, introducing smooth six-cylinder power and modern common-rail injection to executive compact cars.
- Cast Iron Block: Unlike later generations that switched to aluminium, the 306D1 features a heavy-duty cast iron engine block. This provides immense structural strength, enabling it to handle high torque and massive boost pressures without warping.
- First-Gen Bosch Common-Rail System: It uses a high-pressure Bosch common-rail direct injection system operating at a maximum pressure of 1,350 bar. This allowed for much cleaner, quieter, and more efficient combustion than older distributor-pump diesel designs.
- Variable Geometry Turbocharger (VGT): It utilizes a Garrett GT2256V turbocharger with electronically controlled variable vanes. This adjusts the airflow within the turbo to virtually eliminate turbo lag, offering strong torque low down in the RPM range.
- Simplex Timing Chain: It relies on a highly durable front-mounted timing chain system that easily outlasts the vehicle itself, provided regular oil changes are performed.
Technical Profiles
| Specification | Metric Value | Imperial / Standard Value |
|---|---|---|
| Engine Code | M57D30 / 306D1 | M57D30 / 306D1 |
| Displacement | 2,926 cc | 2.9 Litres |
| Bore x Stroke | 84.0 mm x 88.0 mm | 3.31 in x 3.46 in |
| Compression Ratio | 18.0:1 (Traditional high compression) | 18.0:1 |
| Valvetrain | DOHC, 24 Valves, Timing Chain | DOHC, 24 Valves, Timing Chain |
| Fuel System | Bosch Common-Rail (1,350 bar) | Bosch Common-Rail (1,350 bar) |
| Aspiration | Variable Geometry Turbocharged & Intercooled | Variable Geometry Turbocharged & Intercooled |
Performance Output & Applications
The pre-facelift 306D1 engine delivered a linear, effortless wave of torque that transformed the E46 into a formidable long-distance highway cruiser.
- Power Output: 135 kW (184 hp) at 4,000 RPM.
- Torque Output: 390 Nm available from as low as 1,750 RPM up to 3,200 RPM.
- E46 Applications (1999–2003):
- BMW E46 330d Sedan / Touring
- BMW E46 330xd (All-Wheel Drive)
(Note: The facelifted E46 330d from late 2003 onwards upgraded to the 306D2 engine, which increased displacement to 2,993 cc, bumped power to 150 kW / 204 hp, and used an upgraded 1,600 bar injection system).
Key Maintenance & Trouble Areas
While the mechanical core (block, pistons, crank) of the 306D1 is virtually bulletproof, peripheral components require attention as these engines age:
- Incentive to Delete Swirl Flaps: Crucial Exception: Unlike the later 306D2 engine, most manual-transmission pre-facelift 306D1 engines did not come equipped with swirl flaps in the intake manifold. However, automatic versions sometimes did. If present, they must be blanked off immediately to prevent them from breaking and dropping into the cylinders.
- Crankcase Ventilation Valve (Vortex vs. Labyrinth): The original factory breather filter uses a toilet-roll-style felt element that clogs quickly. If ignored, oil forces its way into the turbocharger, causing premature turbo failure. Upgrading to the later BMW “vortex” style separator solves this permanently.
- In-Line Fuel Pump Failure: The E46 has a secondary fuel pump located under the passenger seat floorboard. It is known to fail unexpectedly around the 200,000 km mark, causing a sudden crank-no-start condition.
- Harmonic Balancer Degradation: The heavy rubber dampener on the main crankshaft pulley splits over time, causing harsh vibrations and throwing off the auxiliary drive belts
