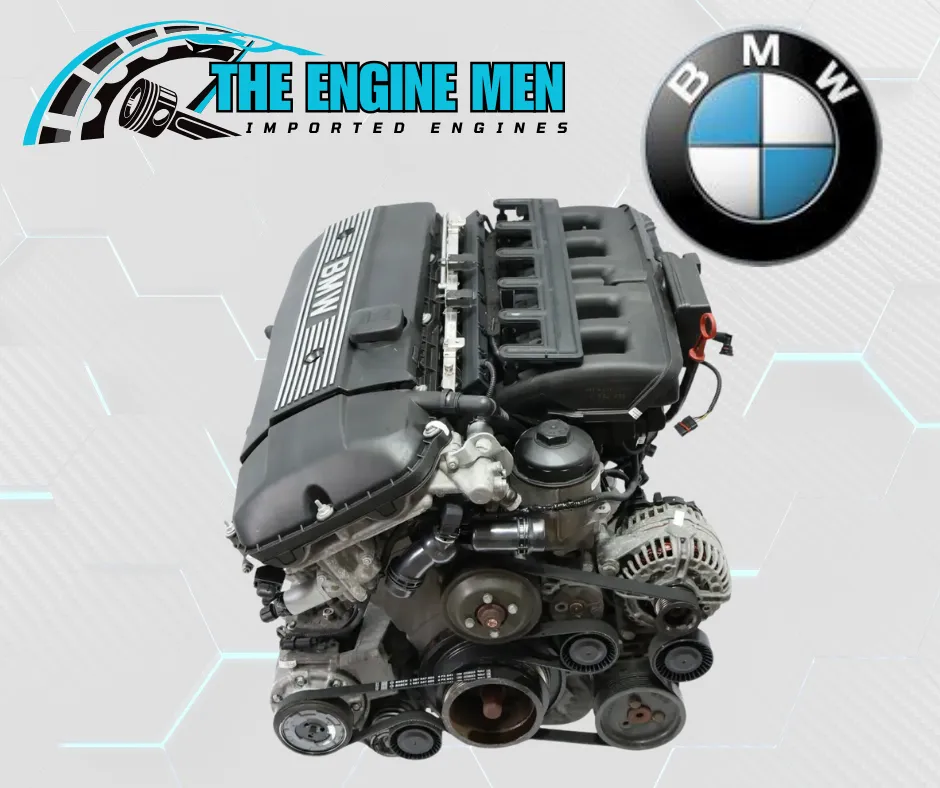

BMW 325 E46 Double Vanos M54B25 Engine
R26,500.00
To clear up a common piece of BMW naming confusion right away: if you own or are looking at an original pre-facelift BMW E46 325i (2000–2002), it does feature the M54B25 engine. However, if the car is a 1998–2000 model, it is a 323i powered by the M52TUB25.
Assuming your vehicle is a true E46 325i (2000–2006), the engine is indeed the legendary M54B25. This 2.5-litre, naturally aspirated, inline 6-cylinder petrol engine represents the peak of BMW’s highly successful M54 engine family, famous for its silk-smooth power delivery and mechanical resilience.
Core Engineering Design
The M54B25 was built on the foundation of the older M52TU engine, updating the electronics and emissions controls to create a modern, highly efficient power unit.
- All-Aluminium Block with Iron Sleeves: To minimise front-end weight and maximize handling agility, the engine casing is cast entirely from lightweight aluminium alloy. To ensure longevity, the cylinder walls are lined with highly robust cast-iron cylinder sleeves.
- Double VANOS System: It utilizes fully variable valve timing on both the intake and exhaust camshafts. Controlled continuously via engine oil pressure solenoids, it constantly shifts the camshaft positions to flatten the torque curve, delivering effortless power at low RPMs and smooth breathing at high RPMs.
- 3-Stage DISA Valve (Dual Resonance Intake Manifold): To optimise volumetric efficiency, the plastic intake manifold uses a computer-controlled butterfly valve (the DISA valve). At low and mid-range RPMs, it alters the internal airflow paths to create long intake runners for higher air velocity (boosting torque); at high RPMs, it shortens the path for maximum airflow volume (boosting horsepower).
- Fully Electronic Drive-by-Wire Throttle: The M54B25 completely removed mechanical throttle cables in favour of a fully electronic, computer-controlled throttle body (Siemens MS43 or MS45 system), allowing for incredibly crisp engine management and smoother traction control integration.
Technical Profiles
| Specification | Metric Value | Imperial / Standard Value |
|---|---|---|
| Engine Code | M54B25 | M54B25 |
| Displacement | 2,494 cc | 2.5 Litres |
| Bore x Stroke | 84.0 mm x 75.0 mm (Short stroke) | 3.31 in x 2.95 in |
| Compression Ratio | 10.5:1 | 10.5:1 |
| Valvetrain | DOHC, 24 Valves, Double VANOS, Chain Driven | DOHC, 24 Valves, Double VANOS, Chain Driven |
| Fuel System | Multi-Point Sequential Port Injection | Multi-Point Sequential Port Injection |
| Aspiration | Naturally Aspirated | Naturally Aspirated |
Performance Output (E46 325i Application)
Because of its short-stroke layout, the M54B25 is an exceptionally rev-happy engine. While it lacks the raw low-end punch of its bigger 3.0-litre brother (the M54B30), it makes up for it with a beautifully linear power band and a metallic straight-six howl up to its 6,500 RPM redline.
- Power Output: 141 kW (189 hp / 192 PS) at 6,000 RPM.
- Torque Output: 245 Nm available cleanly at 3,500 RPM.
- E46 Applications (2000–2006):
- BMW E46 325i / 325xi Sedan & Touring
- BMW E46 325Ci Coupé & Convertible
- BMW E46 325ti Compact
Critical Maintenance & Failure Points
While the core rotating assembly (crankshaft, connecting rods, and pistons) is essentially bulletproof and can easily surpass 350,000 km, the aging external plastics and rubber seals pose major maintenance risks:
- DISA Valve Structural Failure: The internal plastic butterfly flap wears loose on its hexagonal drive pin over time. If left to rattle, the tiny metal pin holding the flap can vibrate completely free and get sucked directly into the engine intake track, leading to catastrophic piston and valve destruction. (Installing an aftermarket aluminium rebuild kit is highly recommended).
- Oil Consumption (Low-Tension Rings): The M54 engine family utilizes unique low-tension oil control piston rings designed to reduce internal friction. As the engine passes 150,000 km, these rings can allow oil to seep into the combustion chamber, resulting in typical oil consumption of roughly 1 litre per 1,500 km to 2,500 km.
- Brittle CCV (Crankcase Ventilation) System: The oil separator unit and its web of plastic hoses hidden under the intake manifold become extremely brittle from engine heat cycles. When they crack, they cause massive unmetered vacuum leaks, resulting in lean fuel codes (P0171/P0174), a rough cold idle, and persistent engine misfires.
- Hardened VANOS Seals: The factory rubber O-rings inside the double VANOS pistons harden and turn to plastic over time. This causes oil pressure to bleed off internally, resulting in a noticeable loss of low-end torque, bogging under 3,000 RPM, and flat spots during acceleration.
- Fragile Cooling System: The plastic expansion tank, thermostat housing, and water pump impeller are notorious for exploding or cracking under pressure. Because the M54 uses an aluminium block, any severe overheating event will pull the head bolt threads completely out of the block casing, destroying the engine.
