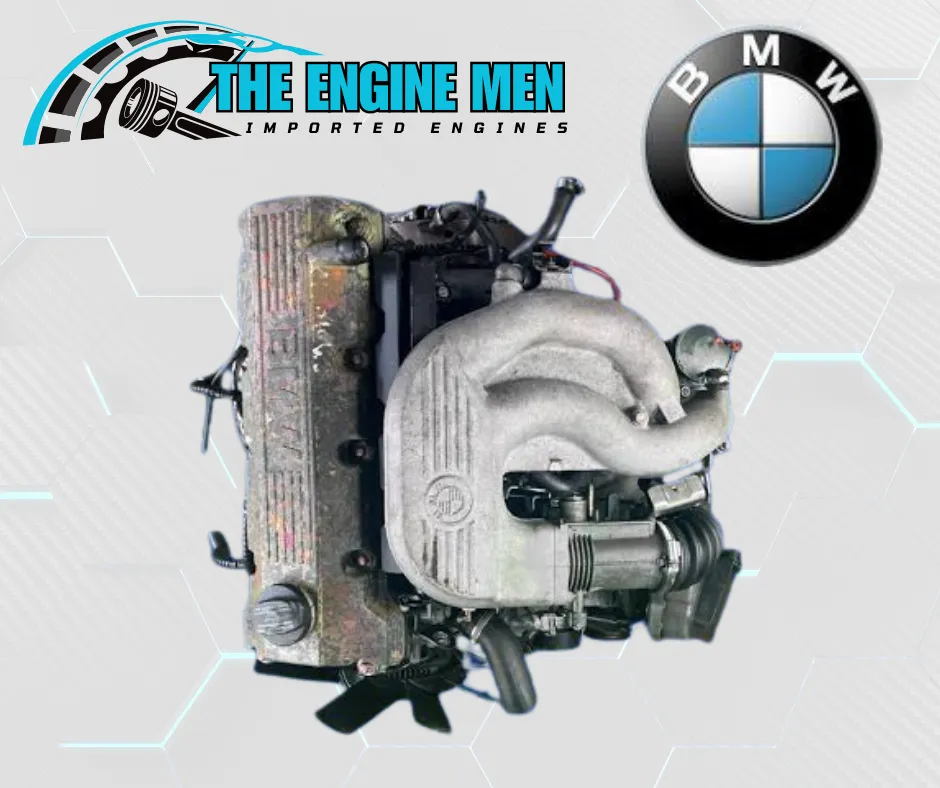

BMW 1.8 318 M43 (Aluminum Intake) Engine

BMW 1.8 318 M43 (Aluminum Intake) Engine

R16,500.00

Enquire Now
The BMW M43B18 (specifically the version featuring a silver cast-aluminium intake manifold) is a 1.8-litre, naturally aspirated, 8-valve inline 4-cylinder petrol engine produced between 1993 and 1999. It represents the first phase of the M43 engine family, heavily utilized in the pre-facelift BMW E36 318i.
Among BMW enthusiasts, this specific aluminum-intake version is legendary for its mechanical simplicity and bulletproof longevity, often running past 400,000 km with basic care.
The Crucial Distinction: Aluminium vs. Plastic Intake
When navigating M43 engines, understanding the intake material is essential for identification:
  • The Aluminium Intake (M43B18): Found in the E36 generation (1993–1999). It features a robust two-piece cast-aluminium dual-length intake system. It is virtually immune to cracking or structural warpage from engine bay heat.
  • The Plastic Intake (M43TU / M43B19): Found in the E46 generation (1998–2001). This was an updated 1.9-litre unit that switched to a glass-fibre reinforced black plastic intake manifold to reduce weight and production costs, though it is more prone to age-related plastic degradation.

Core Engineering Design
The aluminium-intake M43B18 was designed to replace the older, high-maintenance M40 engine, bringing a massive evolutionary leap forward in terms of reliability.
  • Cast Iron Block & SOHC Head: The engine features a heavy-duty cast iron block paired with a simple 8-valve, Single Overhead Cam (SOHC) aluminium cylinder head. The iron block offers immense structural integrity and excellent resistance to warping if minor overheating occurs.
  • Chain-Driven Valvetrain: This was the defining fix over the M40. The M40 engine was notorious for snapping rubber timing belts and destroying valves. The M43 completely resolved this by utilizing a robust steel timing chain system designed to last the entire lifespan of the engine core.
  • Roller Rocker Arms: To reduce internal friction, improve mechanical efficiency, and quieten the valvetrain, BMW reworked the cylinder head to feature hydraulic roller rocker arms. This design completely eliminated the premature camshaft wear issues that plagued older 8-valve BMW engines.
  • First-Generation DISA Valve: The cast-aluminium manifold houses BMW’s first-gen DISA valve (Dual Resonance Intake Manifold). A vacuum-controlled internal flap dynamically routes air: it stays closed at low RPMs to utilize long intake runners (boosting low-end torque) and snaps open at high RPMs to shorten the path for un-choked airflow.

Technical Profiles

Specification Metric Value Imperial / Standard Value
Engine Code M43B18 (Aluminium Intake Spec) M43B18
Displacement 1,796 cc 1.8 Litres
Bore x Stroke 84.0 mm x 81.0 mm 3.31 in x 3.19 in
Compression Ratio 9.7:1 (Highly tolerant of low-octane fuel) 9.7:1
Valvetrain SOHC, 8 Valves, Roller Rockers, Timing Chain SOHC, 8 Valves, Roller Rockers, Timing Chain
Fuel System Bosch Motronic M 1.7 / 1.7.1 Port Injection Multi-Point Injection
Aspiration Naturally Aspirated Naturally Aspirated

Performance Output (E36 318i Application)
Because of its 8-valve layout and dual-length manifold, the engine behaves less like a high-revving sports engine and more like a relaxed, torquey commuter unit. Power is delivered very early, making it highly responsive in low-speed city traffic.
  • Power Output: 85 kW (114 hp / 115 PS) at 5,500 RPM.
  • Torque Output: 168 Nm peaking low in the rev range at 3,900 RPM.
  • Key Applications (1993–1999):
    • BMW E36 318i Sedan / Touring / Convertible
    • BMW E36 318is (Specific budget trims/markets)

Critical Maintenance & Failure Points
While the core block, rotating assembly, and timing chain are functionally indestructible under standard operating conditions, the external peripherals require monitoring as they age:
  • DISA Valve Flap Rattling: The internal butterfly flap inside the aluminium manifold can wear out its plastic pivot pin over time. This creates a distinct, loud clacking or buzzing noise at idle that sounds like loose lifters. If left unaddressed for thousands of kilometres, the assembly can fragment.
  • Profile Gasket and Valve Cover Oil Leaks: The rubber profile gaskets sealing the two halves of the aluminium intake manifold and the valve cover dry out and harden with age. This leads to persistent oil leaks and unmetered vacuum leaks, which cause a rough or hunting engine idle.
  • Plastic Cooling Flanges (The Hidden Leak): While the intake manifold is aluminium, the cooling system still relies on plastic connectors. A notorious plastic cooling flange is bolted to the rear of the cylinder head against the firewall. It turns brittle and cracks without warning, causing a sudden, severe loss of engine coolant and immediate risk of head gasket failure
