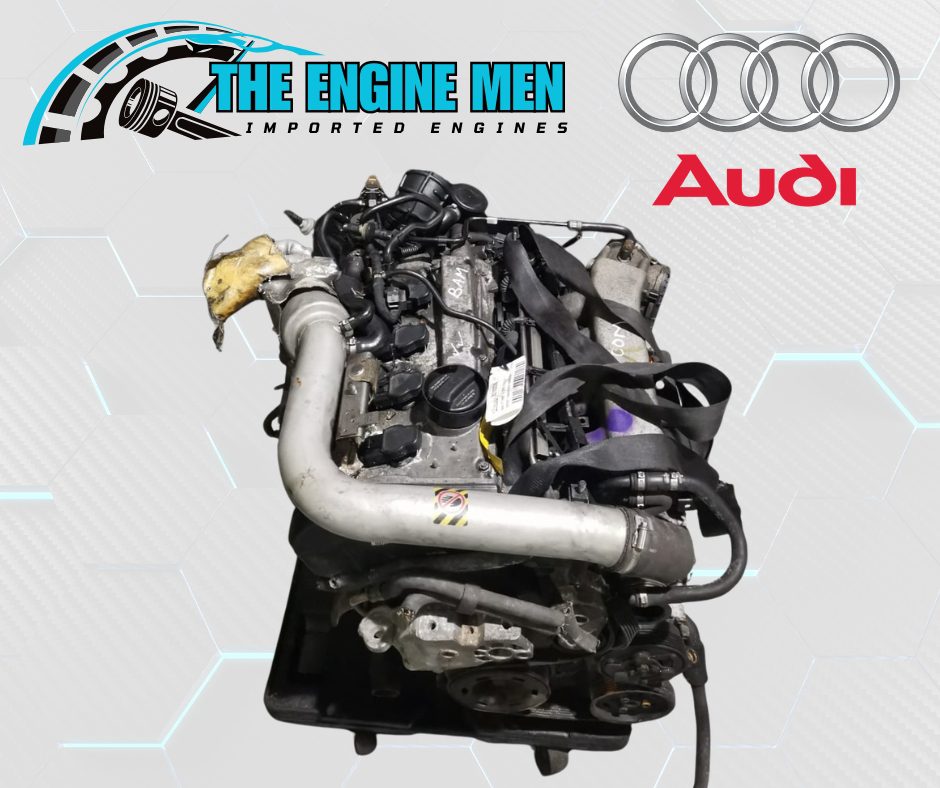

Audi TT/A3 1.8t 20v BAM engine

Audi TT/A3 1.8t 20v BAM engine is the engine code and application named in this listing. BAM is a high-output 1.8-litre, 20-valve turbocharged petrol engine with 1,781 cc displacement. In common applications it is rated at about 165 kW (225 PS) and uses a stronger turbo specification than lower-output 1.8T variants. It is associated with performance applications including the Audi TT quattro and related Volkswagen Group models.

Audi TT/A3 1.8t 20v BAM engine specifications and engine identity

• Engine code: BAM
• Fuel: Petrol
• Engine capacity: 1.8 litres
• Induction: Turbocharged
• Injection: Petrol direct injection on TFSI models; 1.8T engines use their application-specific injection system
• Listed application: Audi TT/A3 1.8t 20v BAM engine

Engine codes help distinguish versions that share a model name or capacity. Read the stamped code on the block and compare it with the car’s data sticker and registration/VIN record. Where the listing uses a shortened family label, request the complete suffix. Power, ECU mapping, emissions equipment, transmission pairing and ancillary parts can change between years and markets. Product images and a “2.0” or “1.8” label are useful for an initial check but cannot confirm direct fitment by themselves.

Audi TT/A3 1.8t 20v BAM engine fitment and vehicle checks

The BAM code is closely tied to the vehicle’s turbo, ECU, drivetrain and emissions configuration. Check whether the recipient is an Audi TT or A3 and verify the generation, gearbox and quattro hardware. An A3 title match does not guarantee that every A3 engine bay or drivetrain uses BAM. Confirm whether the offered unit includes the turbocharger, manifolds, injectors and engine loom.

Before ordering, make a side-by-side component list with the original unit. Record the transmission code, driven wheels and model generation, then compare the sump, mounts, accessory brackets, starter position, exhaust connection, coolant outlets and electrical plugs. Note which sensors are present and where they sit. Ask whether the sale covers a complete dressed engine or a long block. Clarify whether the turbo, manifolds, fuel system, alternator, starter, injectors, engine loom and brackets are supplied or must be transferred.

Audi TT/A3 1.8t 20v BAM engine replacement preparation

Inspect the turbo oil feed and return, charge piping, intercooler, fuel system, ignition coils, cooling circuit and crankcase ventilation. Compare the BAM’s larger turbo hardware and sensors with the existing setup. If the old engine suffered turbo failure, remove oil and debris from the intercooler and intake tract. Use the exact service schedule for belt and water-pump work when preparing an engine with unknown service history.

Before installation, diagnose the original failure and prepare the supporting systems rather than treating the engine as an isolated part. Check oil and coolant condition, radiator and thermostat operation, hoses, water pump, mounts and wiring. Renew oil and filter unless recent service is documented. On turbo petrol models, inspect the oil lines, intercooler and intake for debris; on naturally aspirated units, verify fuel pressure and intake sealing. At first start, monitor oil pressure and coolant temperature, inspect for leaks and abnormal noise, and read stored ECU faults. The installer should confirm sensor connections, idle quality and system readiness before the vehicle is road-tested.

Order the correct Audi TT/A3 1.8t 20v BAM engine replacement

Send the VIN and a clear photograph of the original engine stamping when requesting a compatibility check. Ask the supplier to confirm the complete engine code, the included components and any parts expected to move over from the old unit. If the engine code and product wording do not agree, resolve that discrepancy before placing the order. Browse the engine and gearbox catalogue and compare the listed unit with the vehicle data.

For more technical context, consult 1.8T 225 PS engine specifications. That reference can help identify high-output turbo hardware and quattro drivetrain matching, but final fitment should still be confirmed against the recipient vehicle and the complete stamped code. A carefully matched Audi TT/A3 1.8t 20v BAM engine can make the replacement process clearer for the buyer and installer.
