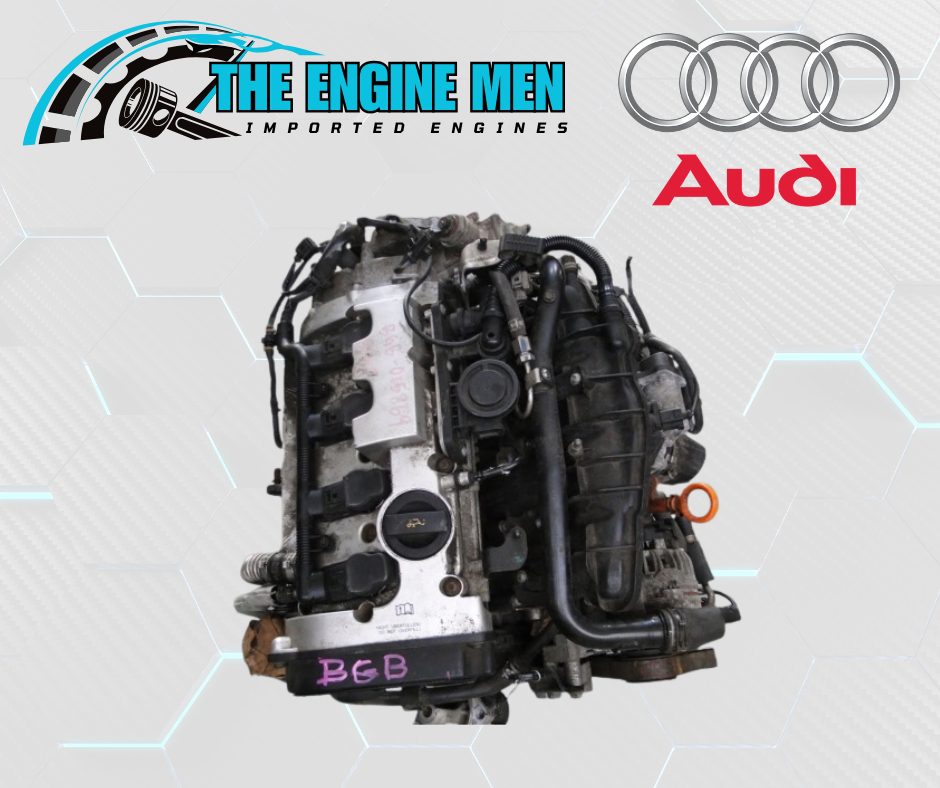

Audi A4 B7 2.0tfsi BGB engine

Audi A4 B7 2.0tfsi BGB engine refers to the longitudinal 2.0-litre turbocharged direct-injection petrol engine fitted to selected A4 B7 vehicles. BGB is one of several related 2.0 TFSI codes, so it is worth identifying the exact suffix instead of buying by capacity or model generation alone. The B7 also came with naturally aspirated petrol engines and other turbo variants that can be mistaken for a close match in a short listing.

Audi A4 B7 2.0tfsi BGB engine specifications

• Code: BGB
• Capacity: 1,984 cc (2.0 litres)
• Configuration: Inline four-cylinder, DOHC, 16 valves
• Fuel system: Petrol direct injection (TFSI)
• Induction: Turbocharged
• Typical rated output: Around 147 kW, depending on application
• Listed vehicle: Audi A4 B7

The BGB’s combination of direct injection and turbocharging is central to its installation. It uses a different fuel system and intake arrangement from a naturally aspirated 2.0 FSI, and its longitudinal packaging differs from transverse 2.0 TFSI engines. The engine code therefore provides a more reliable starting point than “2.0 turbo” on its own.

Check the B7 body and drivetrain

Confirm the VIN, body style, model year, gearbox and whether the A4 is front-wheel drive or quattro. Compare the stamped BGB code on the original and replacement. Inspect sump shape, mounts, intake and exhaust connections, turbo position, accessory drive, wiring plugs and sensor arrangement. A donor engine for an A4 may still require parts from a particular B7 trim or market version. If the code differs, have the supplier verify interchange using parts data before placing the order.

Clarify whether the engine is supplied as a bare long block or with the turbocharger, manifolds, fuel equipment, sensors and accessories. Confirm that the cylinder head and injection components are suitable for the recipient ECU. Ask which original parts must be transferred and whether the workshop recommends replacing wear items during the swap. Photographs can help compare the layout, but should be supported by an inventory of included components.

Prepare the turbocharged direct-injection system

Before installation, inspect the turbo oil supply and return, intercooler, boost pipework, fuel pump and injectors, cooling circuit and lubrication system. If turbo failure caused the original damage, check the intake and exhaust path for contamination and correct the underlying oiling problem. Inspect ignition components and crankcase ventilation as well. A replacement engine cannot compensate for a restricted oil feed, blocked cooling system or faulty ancillary component left in the car.

Use the specified oil, filter and coolant and follow the workshop procedure for priming. At first start, scan the ECU and confirm fuel pressure, sensor signals and smooth idle. Check for oil, coolant and fuel leaks, misfires, abnormal smoke and turbo noise. The installer should verify boost plumbing, engine mounts and exhaust connections before road testing, then recheck for stored faults after the initial operating cycle.

Ordering a BGB engine

Include the VIN and a clear image of the BGB stamp in your enquiry, and confirm the recipient vehicle’s gearbox and drivetrain. Ask for a written list of included parts and any required transfers. Browse the engine stock and compare the supplied unit with your original before ordering.

The 2.0 TFSI diagnostic reference covering BGB offers useful background on the engine family, but the vehicle-specific parts and code check should guide fitment. A correctly matched Audi A4 B7 2.0tfsi BGB engine must agree with the car’s exact hardware and management specification.

In practical terms, the BGB listing is aimed at a longitudinal A4 installation, not simply any Volkswagen Group car with the EA113 name. The position of the engine changes the fitment details: oil-pan shape, bracket locations, exhaust path and nearby chassis clearances must match the B7. A transverse BWA unit is therefore not automatically a BGB substitute. The supplier should confirm the full stamped code and whether the exact recipient configuration can use the replacement, especially when the original car is quattro or has a different gearbox.
