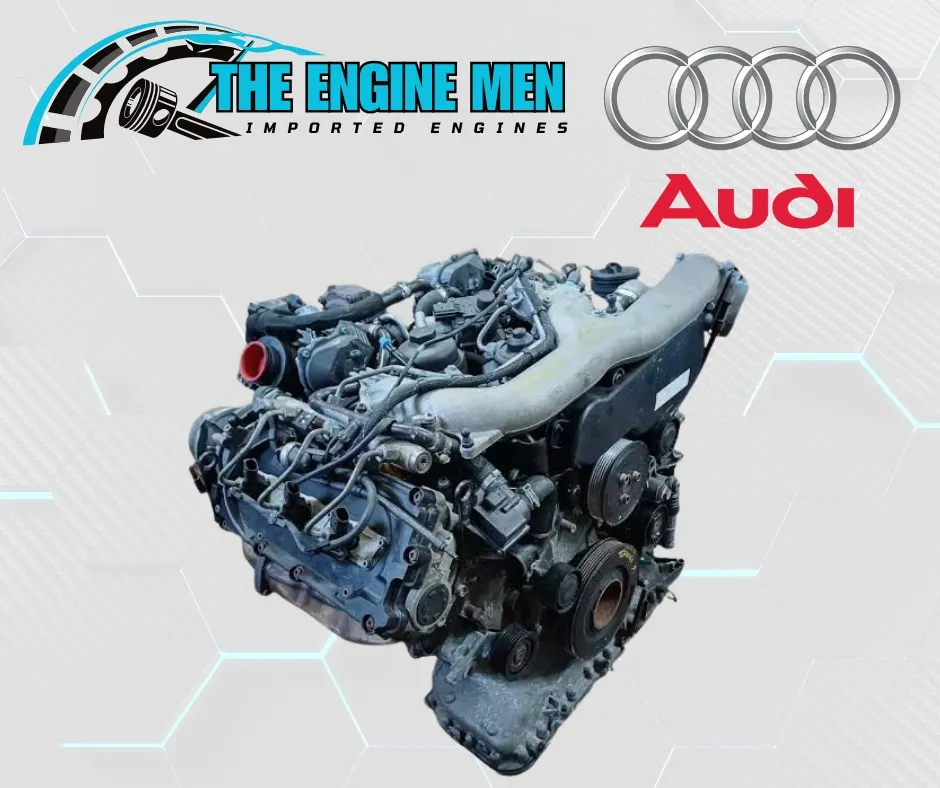

Audi 3.0 TDI CCW Engine

Audi 3.0 TDI CCW Engine is identified in this product by its engine family and stated vehicle application. CCW is a 3.0-litre, approximately 2,967 cc, V6 TDI diesel engine code associated with selected Audi applications. Published vehicle references list versions near 176 kW (239 PS) and 500 Nm, though output, emissions package and ancillaries depend on the specific model. Match the entire code and production specification.

Audi 3.0 TDI CCW Engine engine specification and code

• Engine code: CCW
• Fuel: Diesel
• Configuration: V6
• Induction: Turbocharged diesel
• Listed vehicle: Audi 3.0 TDI CCW Engine

Start replacement research with the code stamped on the engine and the vehicle identification number. Product titles and family names help narrow the search, but they do not list every revision made for different model years, markets and transmissions. Confirm the engine generation, powertrain layout and emissions specification with the vehicle data before purchase. This is especially important where a catalogue uses an abbreviated code, combines two codes or describes an engine by displacement alone. Keep the original engine’s code label and photographs available when speaking with the supplier.

Vehicle compatibility and CCW applications

Check the recipient VIN, model, production year, gearbox, quattro configuration and emissions standard. Compare turbo, injection system, DPF/EGR parts, sump, mounts, wiring, engine supports and exhaust layout. Audi used multiple 3.0 TDI versions in similar vehicles, so CCW should not be selected solely by displacement.

A replacement engine may be supplied as a bare long block or with some bolt-on parts. Confirm exactly what is included and which components must be transferred from the original. Compare the engine mounts, sump, gearbox interface, starter, intake and exhaust routing, cooling connections, accessory brackets, sensors, connectors and engine loom. Check turbo and fuel-system parts by part number where relevant. Even within one engine family, the recipient may require its original manifolds, brackets, sensors or wiring to fit correctly. Ask the installer to review the donor and recipient specifications before removing the existing engine.

Parts and engine code checks before ordering CCW

Confirm the code stamping and request donor details. Identify whether the engine comes with the turbocharger, fuel rail, injectors, intake, sensors and wiring. Verify whether recipient-specific parts must transfer and confirm output/emissions compatibility if another 3.0 TDI code is being replaced.

Record the vehicle make, model, production year, VIN, gearbox and drivetrain when requesting compatibility advice. Provide a clear image of the engine stamp and photographs of the intake, exhaust side, sump and included ancillaries. If the listing code is abbreviated, ask for the full engine code in writing. Confirm any differences in turbocharger, fuel injection, emissions equipment, ECU calibration and output. This information supports a proper fitment check and helps avoid delays caused by ordering an engine that shares a name or capacity but not the required components.

Installation, maintenance and commissioning

Check turbo lubrication, common-rail fuel cleanliness, charge-air system, cooling and emissions equipment. Diagnose the old engine’s failure cause and replace contaminated filters or damaged oil lines as appropriate. After fitting, scan injection, boost and DPF/EGR systems and check smoke, leaks, noise and temperature.

Before the first start, follow the service procedure for the exact recipient vehicle. Check engine oil, filter, coolant, electrical grounds, fuel connections, intake and exhaust joints, mounts and transmission connections. Prime lubrication and fuel systems as specified. Make sure the cooling circuit is filled and bled correctly. Resolve the original engine failure so that contamination, overheating, blocked oil passages or a defective ancillary does not damage the replacement. Replacing accessible seals and service items during installation can also reduce the chance of repeat labour.

After starting, allow the engine to reach operating temperature while monitoring oil pressure, coolant circulation, charging and diagnostic data. Scan the engine and transmission control units for faults. Check for oil, coolant and fuel leaks, smoke, misfires, abnormal mechanical noise, unstable idle and warning lights. Verify that boost and fuel pressure behave as expected on turbocharged or direct-injection variants. Complete a careful road test only after stationary checks pass, and recheck fluid levels and connections afterward. Keep the engine code and parts transferred on the service record.

Order the correct Audi 3.0 TDI CCW Engine

Send the vehicle VIN, year, gearbox, drivetrain and engine-code photograph when requesting fitment confirmation. Ask which full engine code is being supplied and whether the turbocharger, fuel-system components, manifolds, sensors and accessories are included. Confirm any required transfer parts before arranging installation. Browse the engine and gearbox catalogue to compare the listed unit with your original engine.

For additional technical context, see Audi CCW 3.0 TDI output and application reference. This reference may help explain CCW 3.0 TDI V6 output and vehicle-specific installation; final compatibility must still be checked against the recipient vehicle and the actual engine stamping. Choosing a correctly identified Audi 3.0 TDI CCW Engine gives the supplier and installer a clear starting point for matching parts, planning the swap and checking the completed installation.
