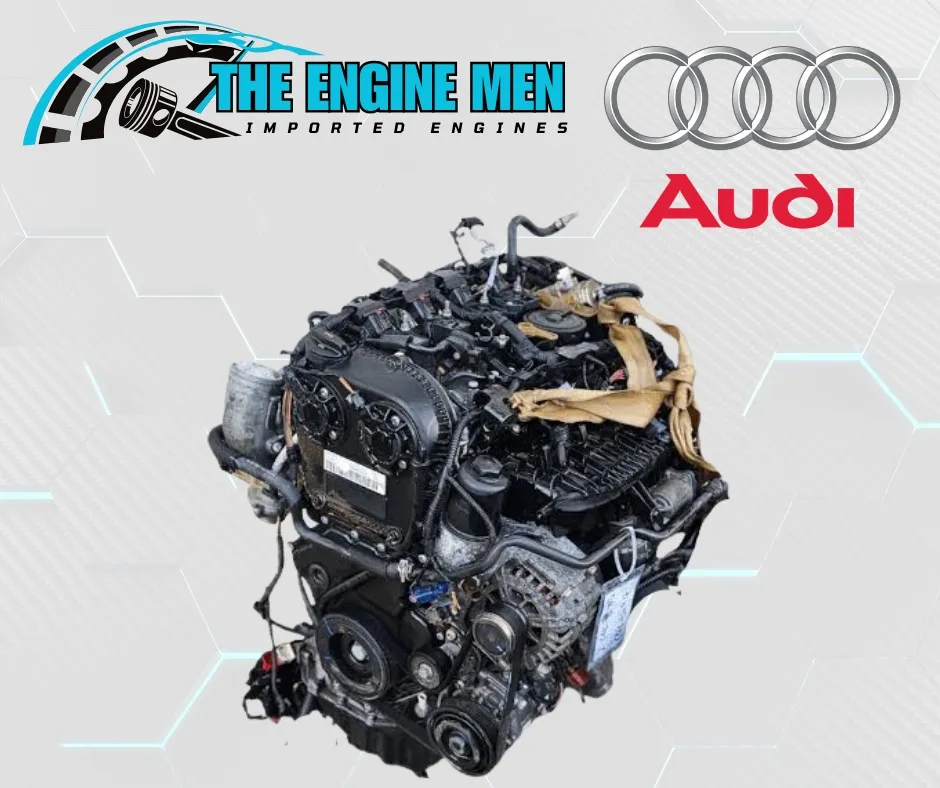

Audi 2.0 TFSI CNC Engine

Audi 2.0 TFSI CNC Engine is identified in this product by its engine family and stated vehicle application. CNC is a shortened listing reference and may refer to the full CNCD engine code. CNCD is a 1,984 cc turbocharged, direct-injection 2.0 TFSI used in selected Audi A4, A5 and Q5 applications, with output around 165 kW (224 PS). The suffix matters because other CNC-prefixed codes and related EA888 versions can use different hardware and calibration.

Audi 2.0 TFSI CNC Engine engine specification and code

• Engine code: CNC
• Fuel: Petrol
• Configuration: inline-four
• Induction: Petrol, with aspiration and fuel system determined by the full engine code
• Listed vehicle: Audi 2.0 TFSI CNC Engine

Start replacement research with the code stamped on the engine and the vehicle identification number. Product titles and family names help narrow the search, but they do not list every revision made for different model years, markets and transmissions. Confirm the engine generation, powertrain layout and emissions specification with the vehicle data before purchase. This is especially important where a catalogue uses an abbreviated code, combines two codes or describes an engine by displacement alone. Keep the original engine’s code label and photographs available when speaking with the supplier.

Vehicle compatibility and CNC applications

Confirm whether the stamped engine code is CNCD and match it to the recipient VIN, model year, gearbox and quattro configuration. The listed name does not specify a chassis. Check turbocharger, high-pressure fuel pump, injectors, sump, mounts, wiring, emissions equipment and ECU calibration; the same displacement alone does not establish compatibility.

A replacement engine may be supplied as a bare long block or with some bolt-on parts. Confirm exactly what is included and which components must be transferred from the original. Compare the engine mounts, sump, gearbox interface, starter, intake and exhaust routing, cooling connections, accessory brackets, sensors, connectors and engine loom. Check turbo and fuel-system parts by part number where relevant. Even within one engine family, the recipient may require its original manifolds, brackets, sensors or wiring to fit correctly. Ask the installer to review the donor and recipient specifications before removing the existing engine.

Parts and engine code checks before ordering CNC

Ask for the complete engine code and donor vehicle details. Verify which turbo, intake and exhaust manifolds, fuel rail, injectors, sensors and accessories are included. Confirm any CNCD versus CDNC/CNCE substitution using the recipient parts catalogue and compare emissions and output specifications before purchase.

Record the vehicle make, model, production year, VIN, gearbox and drivetrain when requesting compatibility advice. Provide a clear image of the engine stamp and photographs of the intake, exhaust side, sump and included ancillaries. If the listing code is abbreviated, ask for the full engine code in writing. Confirm any differences in turbocharger, fuel injection, emissions equipment, ECU calibration and output. This information supports a proper fitment check and helps avoid delays caused by ordering an engine that shares a name or capacity but not the required components.

Installation, maintenance and commissioning

Inspect the direct-injection system, turbo oil and coolant lines, timing-chain history, charge-air tract and cooling circuit. Address the original failure before transferring ancillaries. After installation, scan boost, fuel pressure, cam timing and misfire values, then verify oil pressure, operating temperature and leak-free running.

Before the first start, follow the service procedure for the exact recipient vehicle. Check engine oil, filter, coolant, electrical grounds, fuel connections, intake and exhaust joints, mounts and transmission connections. Prime lubrication and fuel systems as specified. Make sure the cooling circuit is filled and bled correctly. Resolve the original engine failure so that contamination, overheating, blocked oil passages or a defective ancillary does not damage the replacement. Replacing accessible seals and service items during installation can also reduce the chance of repeat labour.

After starting, allow the engine to reach operating temperature while monitoring oil pressure, coolant circulation, charging and diagnostic data. Scan the engine and transmission control units for faults. Check for oil, coolant and fuel leaks, smoke, misfires, abnormal mechanical noise, unstable idle and warning lights. Verify that boost and fuel pressure behave as expected on turbocharged or direct-injection variants. Complete a careful road test only after stationary checks pass, and recheck fluid levels and connections afterward. Keep the engine code and parts transferred on the service record.

Order the correct Audi 2.0 TFSI CNC Engine

Send the vehicle VIN, year, gearbox, drivetrain and engine-code photograph when requesting fitment confirmation. Ask which full engine code is being supplied and whether the turbocharger, fuel-system components, manifolds, sensors and accessories are included. Confirm any required transfer parts before arranging installation. Browse the engine and gearbox catalogue to compare the listed unit with your original engine.

For additional technical context, see Audi A4 B8 2.0 TFSI CNCD application data. This reference may help explain the CNCD suffix, EA888 configuration and vehicle-specific TFSI fitment; final compatibility must still be checked against the recipient vehicle and the actual engine stamping. Choosing a correctly identified Audi 2.0 TFSI CNC Engine gives the supplier and installer a clear starting point for matching parts, planning the swap and checking the completed installation.
