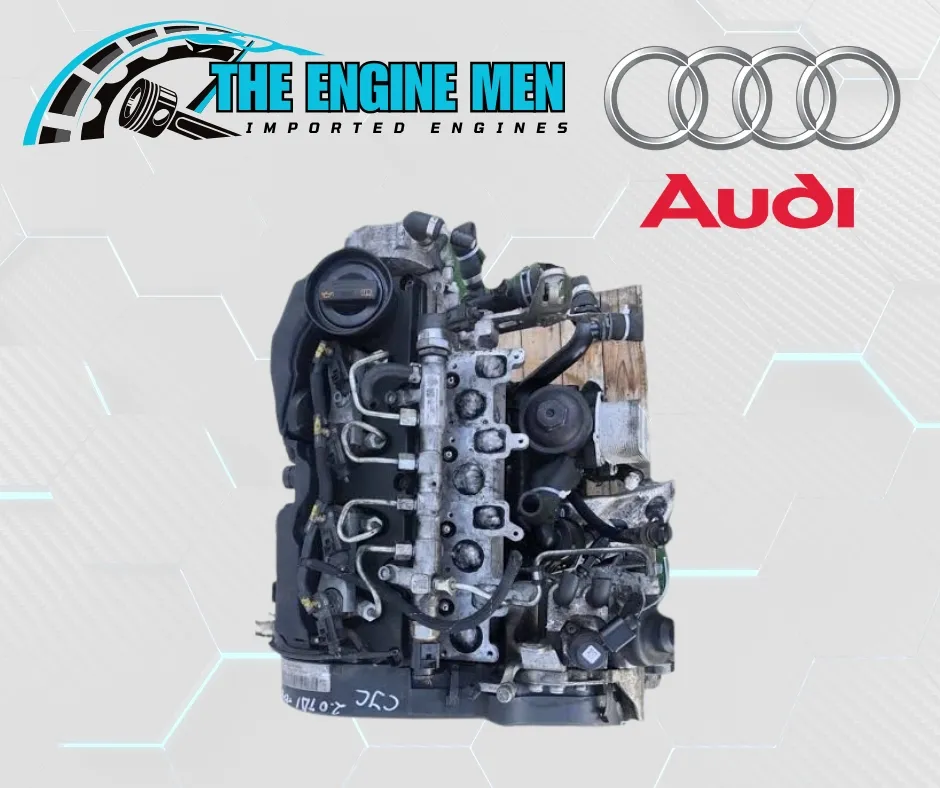

Audi 2.0 TDI CjCA Engine

Audi 2.0 TDI CjCA Engine is identified in this product by its engine family and stated vehicle application. CJCA is a 2.0-litre common-rail TDI diesel code in the EA189 family, with 1,968 cc displacement. It is commonly rated around 105 kW (143 PS) and used in selected Audi A4 and related applications. It differs from higher-output CAHA or CGLC engines in calibration and supporting equipment.

Audi 2.0 TDI CjCA Engine engine specification and code

• Engine code: CJCA
• Fuel: Diesel
• Configuration: inline-four
• Induction: Diesel injection with turbocharging where identified
• Listed vehicle: Audi 2.0 TDI CjCA Engine

The badge, capacity and engine-family name provide a useful first check, but replacement fitment depends on the complete stamped code and vehicle data. Read the engine number and match it to the VIN, production date, gearbox and drivetrain. Where a catalogue entry uses a short code or groups models, ask the supplier to confirm the exact available unit. This avoids choosing an engine based only on a shared displacement or model badge.

Application and compatibility for CJCA

Match CJCA to the Audi VIN, production date, gearbox, drivetrain and emissions specification. Compare turbocharger, fuel pump, injectors, sump, mounts, DPF/EGR parts and wiring. If the recipient carries another 2.0 TDI code, confirm whether the replacement requires a different ECU or ancillary package.

Compare the old and replacement assemblies before installation. Check sump shape, engine mounts, gearbox interface, starter position, intake and exhaust routing, coolant outlets, accessory brackets, sensors and electrical connectors. Establish whether the product is supplied as a long block or a dressed engine. Confirm which fuel-system components, turbo or supercharger, manifolds, wiring and accessories are included and which must transfer. Inspect reused parts before fitting, especially anything related to the original failure.

Parts to verify on the CJCA engine

Ask whether turbo, common-rail components, manifolds, sensors and engine loom are included. Verify engine number and emissions hardware before purchase. The 143 PS label and engine code should agree with the vehicle data; do not select by capacity alone.

Installation and commissioning

Check fuel cleanliness, turbo oil lines, charge-air system, DPF/EGR, cooling and timing service information. Address the old engine’s failure cause before transferring parts. After installation, scan fuel pressure, injector corrections, boost and emissions status and confirm stable idle, temperature and no leaks.

Use the manufacturer’s service information for the recipient vehicle when selecting fluids and performing the first start. Resolve the original fault, refill and prime systems as required, then check oil pressure, coolant circulation, fuel connections and wiring grounds. Scan the engine and transmission electronics for stored faults. Verify stable idle, normal temperature, charging and leak-free operation before a road test. Record the complete engine code and any transferred components with the service paperwork. Document CJCA EA189 common-rail specification and 105 kW output as part of the fitment notes, since this detail helps distinguish the installed version from related engines in the same product family.

Order the correct Audi 2.0 TDI CjCA Engine

Send the VIN, vehicle year, gearbox, drivetrain and a clear photograph of the engine stamp when requesting fitment confirmation. Ask which full engine code is being supplied and whether the turbo, supercharger, injectors, manifolds, sensors and accessories are included. Resolve any mismatch between the product name, stock code and engine stamping before purchase. Browse the engine and gearbox catalogue and compare the listed unit with your original.

For further technical context, consult Audi CJCA engine technical data. This reference can help explain CJCA EA189 common-rail specification and 105 kW output, while final compatibility should be confirmed against the recipient VIN and engine number. Choosing a correctly identified Audi 2.0 TDI CjCA Engine gives the installer a clear basis for component matching and commissioning.
