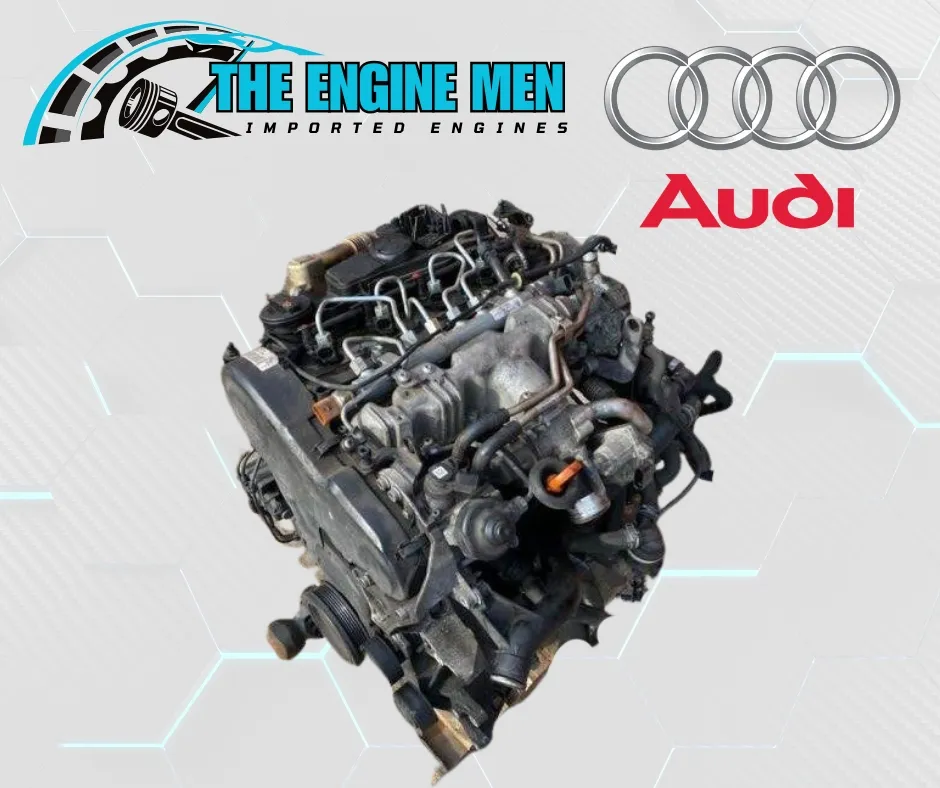

Audi 2.0 TDI CAH Engine

Audi 2.0 TDI CAH Engine is identified in this product by its engine family and stated vehicle application. CAH is a shortened reference to 2.0 TDI codes such as CAHA and CAHB. These are 1,968 cc common-rail turbo-diesels used in longitudinal Audi platforms. CAHA is commonly rated around 125 kW (170 PS), while CAHB is a lower-output variant near 120 kW (163 PS). Confirm the full suffix.

Audi 2.0 TDI CAH Engine engine specification and code

• Engine code: CAH
• Fuel: Diesel
• Configuration: inline-four
• Induction: Diesel injection with turbocharging where identified
• Listed vehicle: Audi 2.0 TDI CAH Engine

The badge, capacity and engine-family name provide a useful first check, but replacement fitment depends on the complete stamped code and vehicle data. Read the engine number and match it to the VIN, production date, gearbox and drivetrain. Where a catalogue entry uses a short code or groups models, ask the supplier to confirm the exact available unit. This avoids choosing an engine based only on a shared displacement or model badge.

Application and compatibility for CAH

Check Audi model, VIN, production year, transmission, front-wheel drive or quattro and emissions package. Compare turbocharger, fuel pump, injectors, sump, mounts, DPF/EGR, engine loom and ECU. CAHA/CAHB variants may differ in turbo and calibration, so the shortened “CAH” title is not enough to determine interchange.

Compare the old and replacement assemblies before installation. Check sump shape, engine mounts, gearbox interface, starter position, intake and exhaust routing, coolant outlets, accessory brackets, sensors and electrical connectors. Establish whether the product is supplied as a long block or a dressed engine. Confirm which fuel-system components, turbo or supercharger, manifolds, wiring and accessories are included and which must transfer. Inspect reused parts before fitting, especially anything related to the original failure.

Parts to verify on the CAH engine

Ask which complete code is supplied and whether turbo, common-rail components, manifolds, sensors and wiring are included. Verify DPF and EGR fitment against the recipient. Confirm engine-control software and transmission compatibility before removing the old unit.

Installation and commissioning

Inspect fuel-system cleanliness, turbo oil lines, DPF/EGR equipment, intake and cooling. Diagnose the original failure and replace filters and service parts to the vehicle specification. After installation, scan rail pressure, boost, injector correction and emissions codes; check smoke, leaks and temperature.

Use the manufacturer’s service information for the recipient vehicle when selecting fluids and performing the first start. Resolve the original fault, refill and prime systems as required, then check oil pressure, coolant circulation, fuel connections and wiring grounds. Scan the engine and transmission electronics for stored faults. Verify stable idle, normal temperature, charging and leak-free operation before a road test. Record the complete engine code and any transferred components with the service paperwork. Document CAHA/CAHB suffixes and their power and turbo differences as part of the fitment notes, since this detail helps distinguish the installed version from related engines in the same product family.

Order the correct Audi 2.0 TDI CAH Engine

Send the VIN, vehicle year, gearbox, drivetrain and a clear photograph of the engine stamp when requesting fitment confirmation. Ask which full engine code is being supplied and whether the turbo, supercharger, injectors, manifolds, sensors and accessories are included. Resolve any mismatch between the product name, stock code and engine stamping before purchase. Browse the engine and gearbox catalogue and compare the listed unit with your original.

For further technical context, consult Audi 2.0 TDI common-rail engine data. This reference can help explain CAHA/CAHB suffixes and their power and turbo differences, while final compatibility should be confirmed against the recipient VIN and engine number. Choosing a correctly identified Audi 2.0 TDI CAH Engine gives the installer a clear basis for component matching and commissioning.
